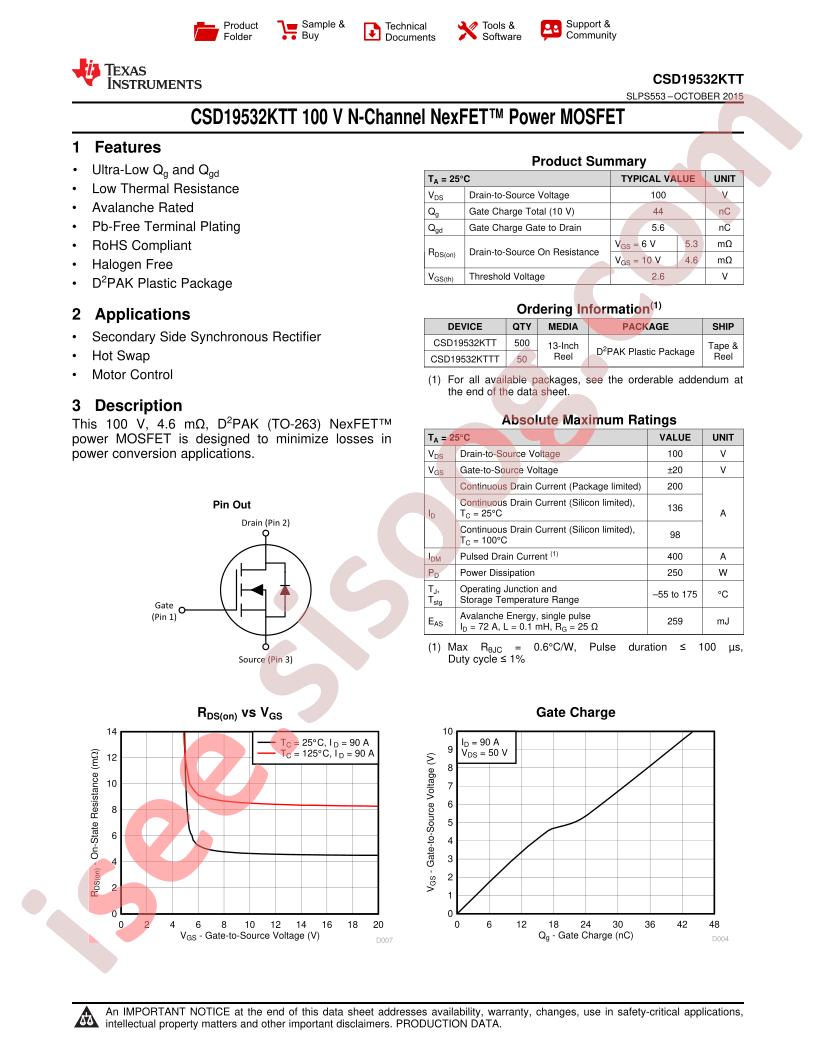

CSD19532KTT Datasheet دیتاشیت

CSD19532KTT Datasheet

مشخصات دیتاشیت

نام دیتاشیت CSD19532KTT Datasheet
حجم فایل 406.702 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

مشاهده دیتاشیت CSD19532KTT Datasheet

دانلود دیتاشیت

سایر مستندات

CSD19532KTTT 13 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: Texas Instruments CSD19532KTTT
  • Operating Temperature: -55°C~+175°C@(Tj)
  • Power Dissipation (Pd): 250W
  • Total Gate Charge (Qg@Vgs): 57nC@10V
  • Drain Source Voltage (Vdss): 100V
  • Input Capacitance (Ciss@Vds): 5060pF@50V
  • Continuous Drain Current (Id): 200A
  • Gate Threshold Voltage (Vgs(th)@Id): 3.2V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 5.6mΩ@90A,10V
  • Package: TO-263-3
  • Manufacturer: Texas Instruments
  • Power Dissipation (Max): 250W (Tc)
  • Drain to Source Voltage (Vdss): 100V
  • Rds On (Max) @ Id, Vgs: 5.6mOhm @ 90A, 10V
  • Vgs (Max): ±20V
  • FET Type: N-Channel
  • Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
  • Technology: MOSFET (Metal Oxide)
  • Current - Continuous Drain (Id) @ 25°C: 200A (Ta)
  • FET Feature: -
  • Input Capacitance (Ciss) (Max) @ Vds: 5060pF @ 50V
  • Packaging: Cut Tape (CT)
  • Package / Case: TO-263-4, D²Pak (3 Leads + Tab), TO-263AA
  • Part Status: Active
  • Series: NexFET™
  • Vgs(th) (Max) @ Id: 3.2V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 57nC @ 10V
  • Supplier Device Package: DDPAK/TO-263-3
  • Mounting Type: Surface Mount
  • Base Part Number: CSD19532
  • detail: N-Channel 100V 200A (Ta) 250W (Tc) Surface Mount DDPAK/TO-263-3
