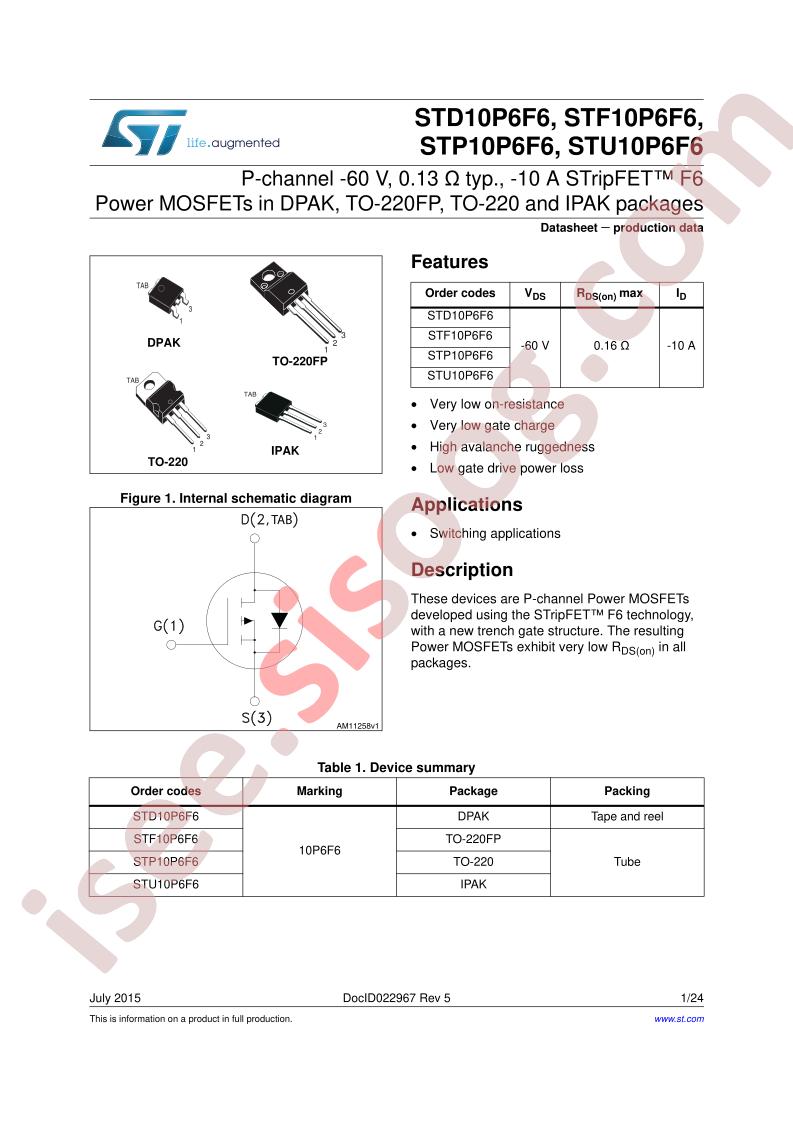

STx10P6F6 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STx10P6F6
|
|
حجم فایل
|
1227.379
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
24
|
مشخصات فنی
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
STMicroelectronics STD10P6F6
-
Power Dissipation (Pd):
35W
-
Total Gate Charge (Qg@Vgs):
6.4nC@10V
-
Drain Source Voltage (Vdss):
60V
-
Input Capacitance (Ciss@Vds):
340pF@48V
-
Continuous Drain Current (Id):
10A
-
Gate Threshold Voltage (Vgs(th)@Id):
4V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
160mΩ@10V,5A
-
Package:
TO-252
-
Manufacturer:
STMicroelectronics
-
Series:
DeepGATE™, STripFET™ VI
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
P-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
60V
-
Current - Continuous Drain (Id) @ 25°C:
10A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
160mOhm @ 5A, 10V
-
Vgs(th) (Max) @ Id:
4V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
6.4nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
340pF @ 48V
-
FET Feature:
-
-
Power Dissipation (Max):
35W (Tc)
-
Operating Temperature:
175°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
DPAK
-
Package / Case:
TO-252-3, DPak (2 Leads + Tab), SC-63
-
Base Part Number:
STD10
-
detail:
P-Channel 60V 10A (Tc) 35W (Tc) Surface Mount DPAK
