دیتاشیت STGF10NB60SD

STG(F,P)10NB60SD

مشخصات دیتاشیت

نام دیتاشیت STG(F,P)10NB60SD
حجم فایل 436.825 کیلوبایت
نوع فایل pdf
تعداد صفحات 15

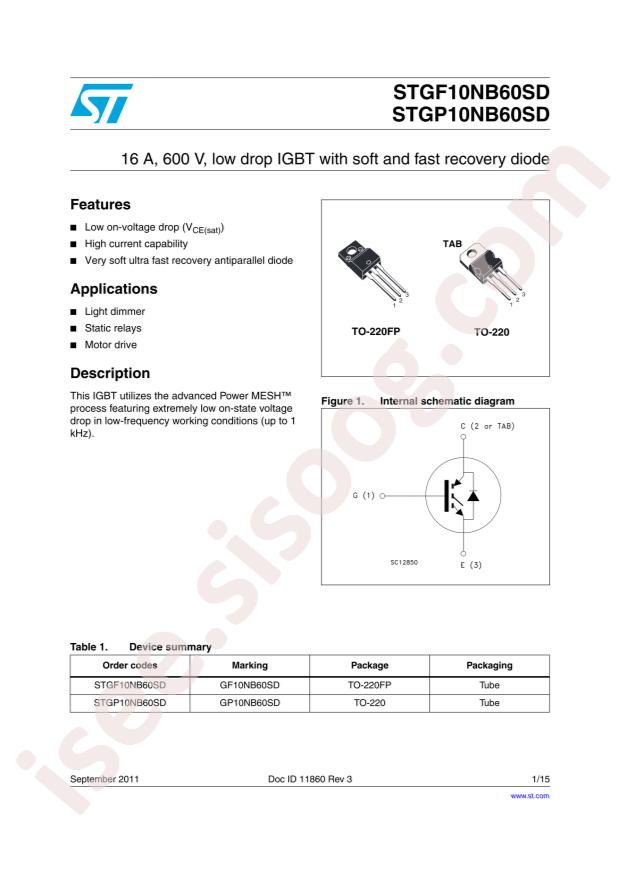

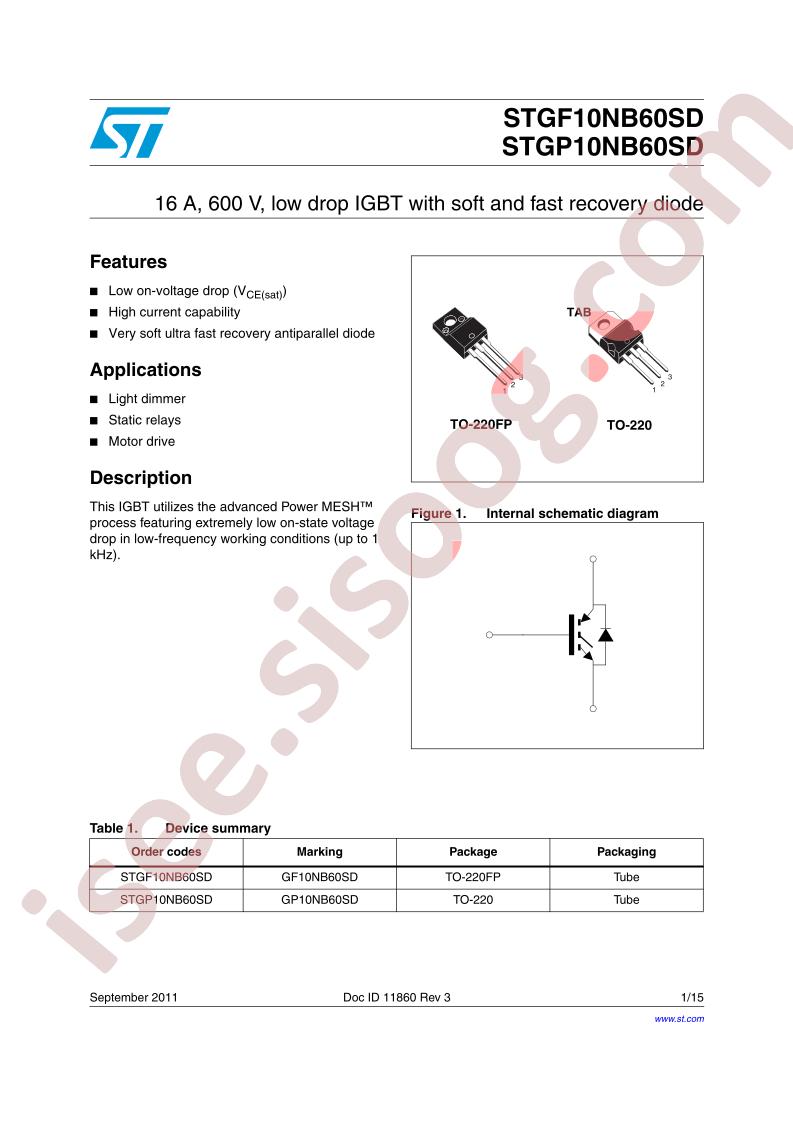

دانلود دیتاشیت STG(F,P)10NB60SD

STG(F,P)10NB60SD Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: PowerMESH™
  • Packaging: Tube
  • Part Status: Active
  • IGBT Type: -
  • Voltage - Collector Emitter Breakdown (Max): 600V
  • Current - Collector (Ic) (Max): 23A
  • Current - Collector Pulsed (Icm): 80A
  • Vce(on) (Max) @ Vge, Ic: 1.75V @ 15V, 10A
  • Power - Max: 25W
  • Switching Energy: 600µJ (on), 5mJ (off)
  • Input Type: Standard
  • Gate Charge: 33nC
  • Td (on/off) @ 25°C: 700ns/1.2µs
  • Test Condition: 480V, 10A, 1kOhm, 15V
  • Reverse Recovery Time (trr): 37ns
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Package / Case: TO-220-3 Full Pack
  • Supplier Device Package: TO-220FP
  • Base Part Number: STGF10
  • detail: IGBT 600V 23A 25W Through Hole TO-220FP
