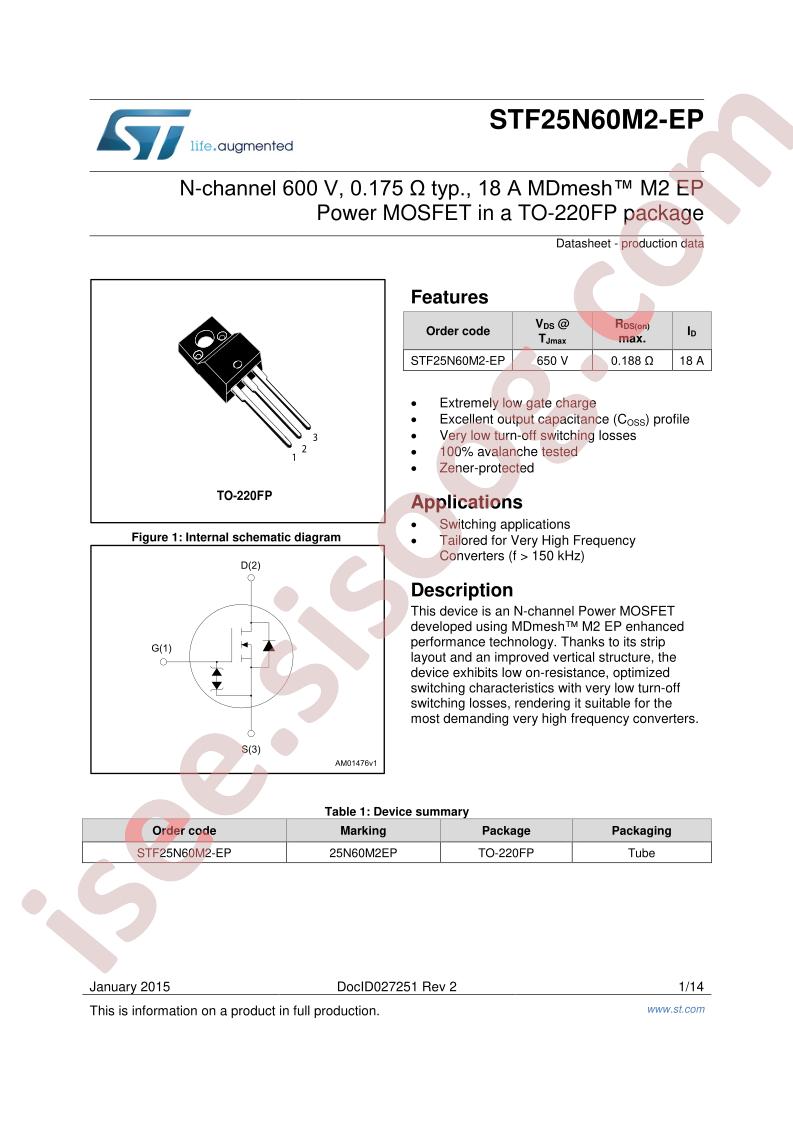

دیتاشیت STF25N60M2-EP
مشخصات دیتاشیت
| نام دیتاشیت |
STF25N60M2-EP
|
| حجم فایل |
236.891
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
14
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
STMicroelectronics STF25N60M2-EP
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
30W
-
Total Gate Charge (Qg@Vgs):
29nC@10V
-
Input Capacitance (Ciss@Vds):
1090pF@100V
-
Continuous Drain Current (Id):
18A
-
Gate Threshold Voltage (Vgs(th)@Id):
4.75V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
-
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
188mΩ@9A,10V
-
Package:
TO-220F
-
Manufacturer:
STMicroelectronics
-
Series:
MDmesh™ M2-EP
-
Packaging:
Tube
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
600V
-
Current - Continuous Drain (Id) @ 25°C:
18A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
188mOhm @ 9A, 10V
-
Vgs(th) (Max) @ Id:
4.75V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
29nC @ 10V
-
Vgs (Max):
±25V
-
Input Capacitance (Ciss) (Max) @ Vds:
1090pF @ 100V
-
FET Feature:
-
-
Power Dissipation (Max):
30W (Tc)
-
Mounting Type:
Through Hole
-
Supplier Device Package:
TO-220FP
-
Package / Case:
TO-220-3 Full Pack
-
Base Part Number:
STF25
-
detail:
N-Channel 600V 18A (Tc) 30W (Tc) Through Hole TO-220FP
