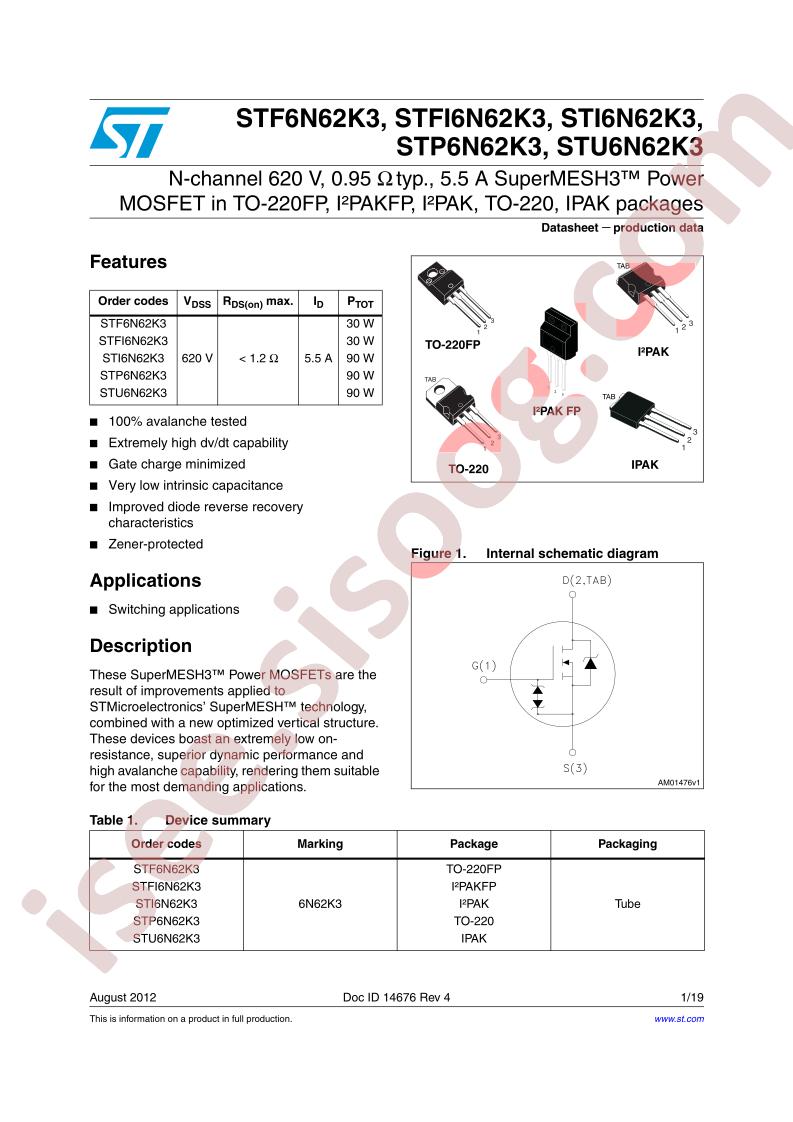

دیتاشیت STP6N62K3
مشخصات دیتاشیت
| نام دیتاشیت |
STx(I)6N62K3
|
| حجم فایل |
1071.943
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
19
|
مشخصات
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
STMicroelectronics STP6N62K3
-
Operating Temperature:
+150°C@(Tj)
-
Power Dissipation (Pd):
90W
-
Total Gate Charge (Qg@Vgs):
34nC@10V
-
Drain Source Voltage (Vdss):
620V
-
Input Capacitance (Ciss@Vds):
875pF@50V
-
Continuous Drain Current (Id):
5.5A
-
Gate Threshold Voltage (Vgs(th)@Id):
3.75V@50uA
-
Reverse Transfer Capacitance (Crss@Vds):
17pF@50V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
950mΩ@10V,2.8A
-
Package:
TO-220
-
Manufacturer:
STMicroelectronics
-
Series:
SuperMESH3™
-
Packaging:
Tube
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
620V
-
Current - Continuous Drain (Id) @ 25°C:
5.5A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
1.2Ohm @ 2.8A, 10V
-
Vgs(th) (Max) @ Id:
4.5V @ 50µA
-
Gate Charge (Qg) (Max) @ Vgs:
34nC @ 10V
-
Vgs (Max):
±30V
-
Input Capacitance (Ciss) (Max) @ Vds:
875pF @ 50V
-
FET Feature:
-
-
Power Dissipation (Max):
90W (Tc)
-
Mounting Type:
Through Hole
-
Supplier Device Package:
TO-220AB
-
Package / Case:
TO-220-3
-
Base Part Number:
STP6N
-
detail:
N-Channel 620V 5.5A (Tc) 90W (Tc) Through Hole TO-220AB
