دیتاشیت STP9NK70ZFP

STx9NK70Z(FP,-1)

مشخصات دیتاشیت

نام دیتاشیت STx9NK70Z(FP,-1)
حجم فایل 684.107 کیلوبایت
نوع فایل pdf
تعداد صفحات 14

دانلود دیتاشیت STx9NK70Z(FP,-1)

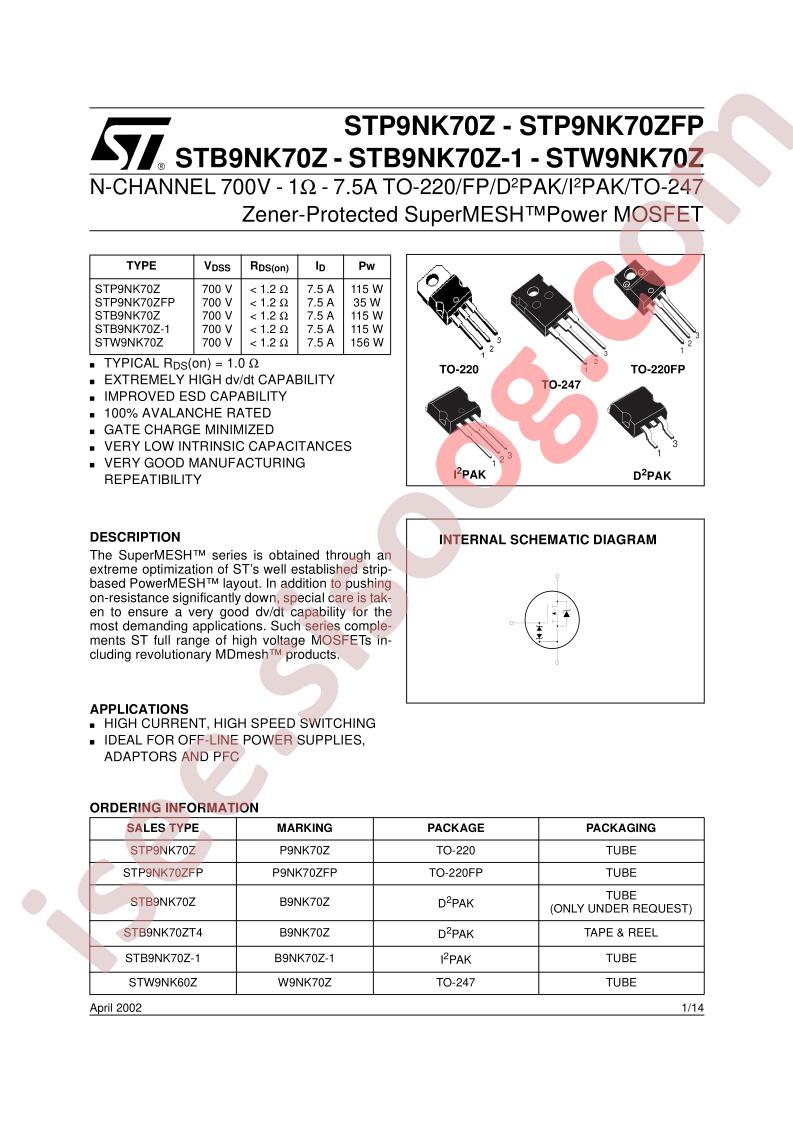

STx9NK70Z(FP,-1) Datasheet

مشخصات

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: STMicroelectronics STP9NK70ZFP
  • Power Dissipation (Pd): 35W
  • Drain Source Voltage (Vdss): 700V
  • Continuous Drain Current (Id): 7.5A
  • Gate Threshold Voltage (Vgs(th)@Id): 4.5V@100uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 1.2Ω@10V,4A
  • Package: TO-220F
  • Manufacturer: STMicroelectronics
  • Series: SuperMESH™
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 700V
  • Current - Continuous Drain (Id) @ 25°C: 7.5A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 1.2Ohm @ 4A, 10V
  • Vgs(th) (Max) @ Id: 4.5V @ 100µA
  • Gate Charge (Qg) (Max) @ Vgs: 68nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 1370pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 35W (Tc)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-220FP
  • Package / Case: TO-220-3 Full Pack
  • Base Part Number: STP9N
  • detail: N-Channel 700V 7.5A (Tc) 35W (Tc) Through Hole TO-220FP
