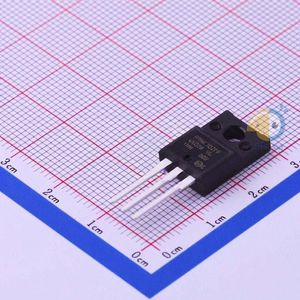

STP9NK70ZFP
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | STMicroelectronics |
| Package | TO-220-3 Full Pack |
| Datasheet | STx9NK70Z(FP,-1) |
| Description | N-Channel 700V 7.5A (Tc) 35W (Tc) Through Hole TO-220FP |
فروشنده های STP9NK70ZFP
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات STP9NK70ZFP
- RoHS true
- Type N Channel
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet STMicroelectronics STP9NK70ZFP
- Power Dissipation (Pd) 35W
- Drain Source Voltage (Vdss) 700V
- Continuous Drain Current (Id) 7.5A
- Gate Threshold Voltage (Vgs(th)@Id) 4.5V@100uA
- Drain Source On Resistance (RDS(on)@Vgs,Id) 1.2Ω@10V,4A
- Package TO-220F
- Manufacturer STMicroelectronics
- Series SuperMESH™
- Packaging Tube
- Part Status Active
- FET Type N-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 700V
- Current - Continuous Drain (Id) @ 25°C 7.5A (Tc)
- Drive Voltage (Max Rds On, Min Rds On) 10V
- Rds On (Max) @ Id, Vgs 1.2Ohm @ 4A, 10V
- Vgs(th) (Max) @ Id 4.5V @ 100µA
- Gate Charge (Qg) (Max) @ Vgs 68nC @ 10V
- Vgs (Max) ±30V
- Input Capacitance (Ciss) (Max) @ Vds 1370pF @ 25V
- FET Feature -
- Power Dissipation (Max) 35W (Tc)
- Operating Temperature -55°C ~ 150°C (TJ)
- Mounting Type Through Hole
- Supplier Device Package TO-220FP
- Package / Case TO-220-3 Full Pack
- Base Part Number STP9N
- detail N-Channel 700V 7.5A (Tc) 35W (Tc) Through Hole TO-220FP
