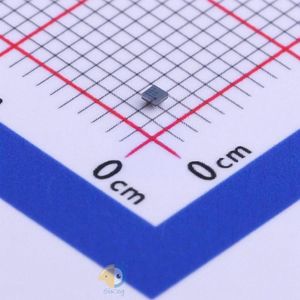

CSD25213W10 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
CSD25213W10
|
|
حجم فایل
|
87.087
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
9
|
مشخصات فنی
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:

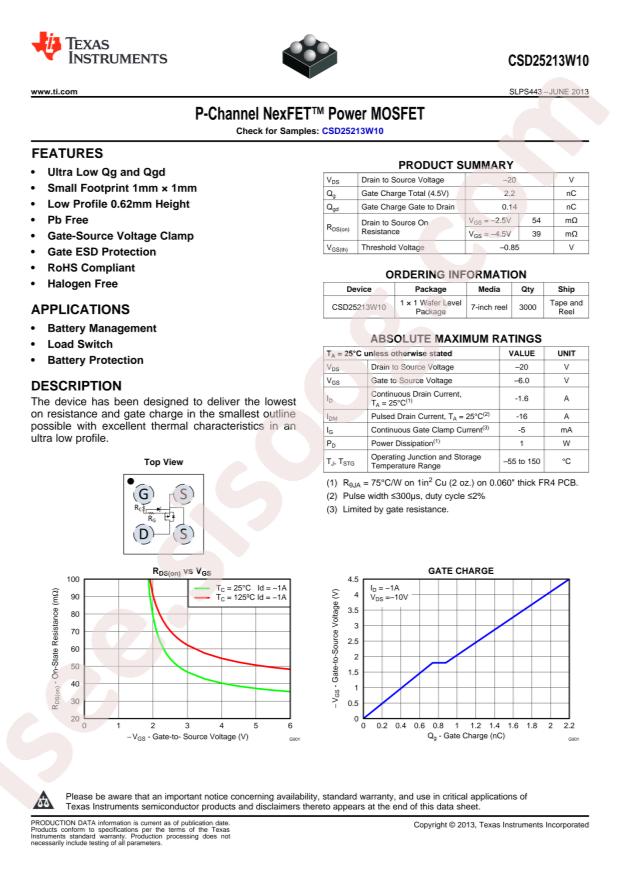

Texas Instruments CSD25213W10
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
1W
-
Total Gate Charge (Qg@Vgs):
2.2nC@4.5V
-
Drain Source Voltage (Vdss):
20V
-
Input Capacitance (Ciss@Vds):
368pF@10V
-
Continuous Drain Current (Id):
1.6A
-
Gate Threshold Voltage (Vgs(th)@Id):
850mV@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
7.8pF@10V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
39mΩ@4.5V,1A
-
Package:
BGA-4
-
Manufacturer:
Texas Instruments
-
Power Dissipation (Max):
1W (Ta)
-
Drain to Source Voltage (Vdss):
20V
-
Rds On (Max) @ Id, Vgs:
47mOhm @ 1A, 4.5V
-
Vgs (Max):
-6V
-
FET Type:
P-Channel
-
Drive Voltage (Max Rds On, Min Rds On):
2.5V, 4.5V
-
Technology:
MOSFET (Metal Oxide)
-
Current - Continuous Drain (Id) @ 25°C:
1.6A (Ta)
-
FET Feature:
-
-
Input Capacitance (Ciss) (Max) @ Vds:
478pF @ 10V
-
Packaging:
Cut Tape (CT)
-
Package / Case:
4-UFBGA, DSBGA
-
Part Status:
Active
-
Series:
NexFET™
-
Vgs(th) (Max) @ Id:
1.1V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
2.9nC @ 4.5V
-
Supplier Device Package:
4-DSBGA (1x1)
-
Mounting Type:
Surface Mount
-
Base Part Number:
CSD2521
-
detail:
P-Channel 20V 1.6A (Ta) 1W (Ta) Surface Mount 4-DSBGA (1x1)
