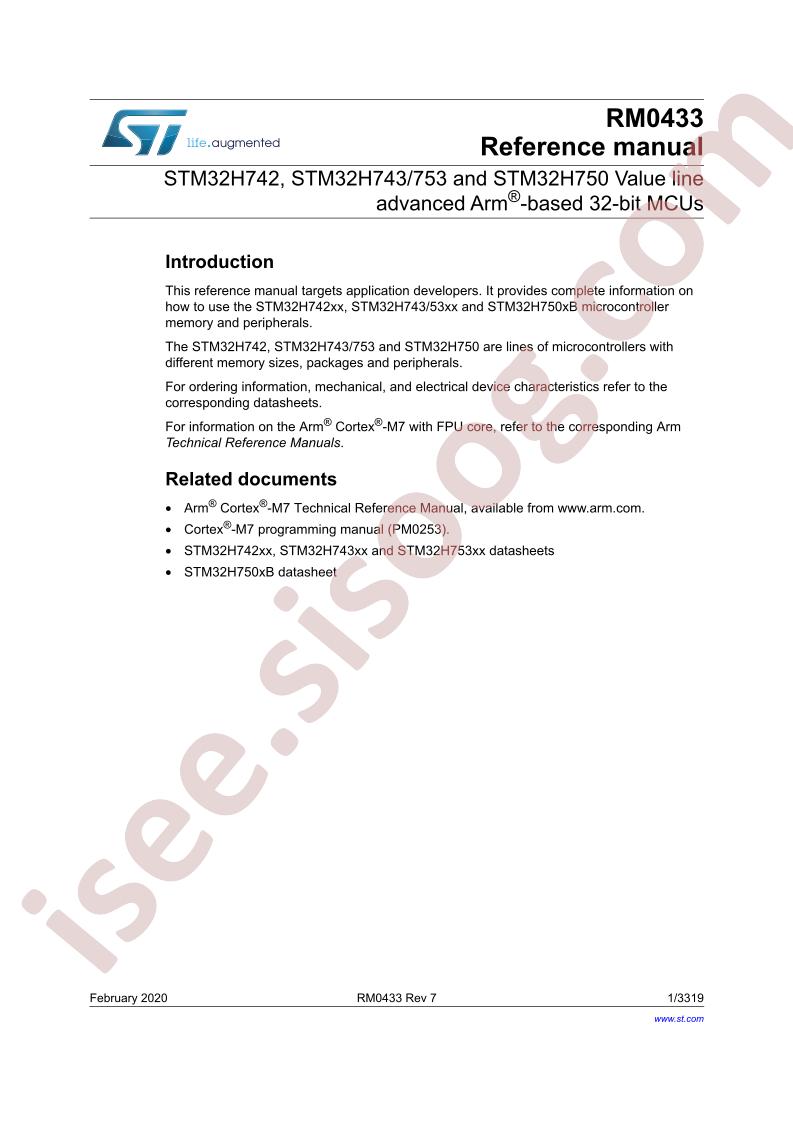

STM32H743, 753, 750 Ref. Manual دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت STM32H743, 753, 750 Ref. Manual	دانلود دیتاشیت

RoHS: true
Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
Datasheet: STMicroelectronics STM32H742AGI6
Package: BGA-169
Manufacturer: STMicroelectronics
Series: STM32H7
Part Status: Active
Core Processor: ARM® Cortex®-M7
Core Size: 32-Bit
Speed: 480MHz
Connectivity: CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG
Peripherals: Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT
Number of I/O: 131
Program Memory Size: 1MB (1M x 8)
Program Memory Type: FLASH
EEPROM Size: -
RAM Size: 692K x 8
Voltage - Supply (Vcc/Vdd): 1.62V ~ 3.6V
Data Converters: A/D 36x16b; D/A 2x12b
Oscillator Type: Internal
Operating Temperature: -40°C ~ 85°C (TA)
Mounting Type: Surface Mount
Package / Case: 169-UFBGA
Supplier Device Package: 169-UFBGA (7x7)
detail: ARM® Cortex®-M7 STM32H7 Microcontroller IC 32-Bit 480MHz 1MB (1M x 8) FLASH 169-UFBGA (7x7)
