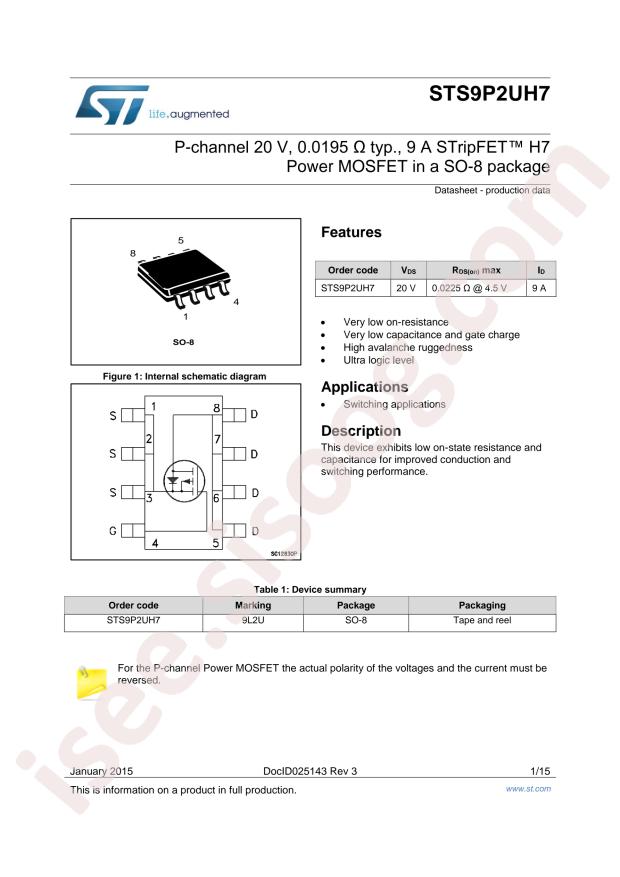

STS9P2UH7 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STS9P2UH7
|
|
حجم فایل
|
57.351
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
15
|
مشخصات فنی
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
STMicroelectronics STS9P2UH7
-
Power Dissipation (Pd):
2.7W
-
Drain Source Voltage (Vdss):
20V
-
Continuous Drain Current (Id):
9A
-
Gate Threshold Voltage (Vgs(th)@Id):
1V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
22.5mΩ@4.5V,4.5A
-

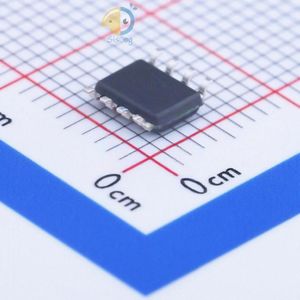

Package:
SOP-8
-
Manufacturer:
STMicroelectronics
-
Series:
STripFET™
-
Packaging:
Cut Tape (CT)
-
Part Status:
Obsolete
-
FET Type:
P-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
20V
-
Current - Continuous Drain (Id) @ 25°C:
9A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
1.5V, 4.5V
-
Rds On (Max) @ Id, Vgs:
22.5mOhm @ 4.5A, 4.5V
-
Vgs(th) (Max) @ Id:
1V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
22nC @ 4.5V
-
Vgs (Max):
±8V
-
Input Capacitance (Ciss) (Max) @ Vds:
2390pF @ 16V
-
FET Feature:
-
-
Power Dissipation (Max):
2.7W (Tc)
-
Operating Temperature:
150°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
8-SO
-
Package / Case:
8-SOIC (0.154", 3.90mm Width)
-
Base Part Number:
STS9P
-
detail:
P-Channel 20V 9A (Tc) 2.7W (Tc) Surface Mount 8-SO
