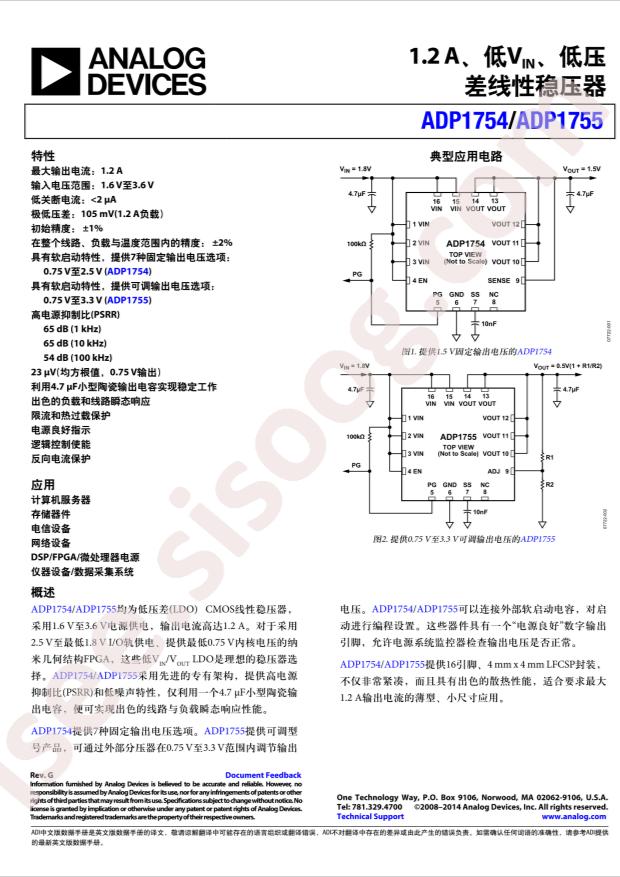

دیتاشیت ADP1755ACPZ-R7
مشخصات دیتاشیت
| نام دیتاشیت |
ADP1754,55
|
| حجم فایل |
1395.599
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
20
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Analog Devices ADP1755ACPZ-R7
-
Output Type:
Adjustable
-
Output Current:
1.2A
-
Output Voltage:
0.75V~3.3V
-
Dropout Voltage:
0.2V@(1.2A)
-
Output Polarity:
positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
3.6V
-
Operating Temperature:
-40°C~+125°C
-
Quiescent Current (Ground Current):
800uA
-
Package:
LFCSP-16-WQ
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Number of Regulators:
1
-
Voltage - Input (Max):
3.6V
-
Voltage - Output (Min/Fixed):
0.75V
-
Voltage - Output (Max):
3.3V
-
Voltage Dropout (Max):
0.2V @ 1.2A
-
Current - Output:
1.2A
-
Current - Quiescent (Iq):
800µA
-
Current - Supply (Max):
1.4mA
-
PSRR:
65dB ~ 51dB (1kHz ~ 100kHz)
-
Control Features:
Enable, Power Good, Soft Start
-
Protection Features:
Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
-
Mounting Type:
Surface Mount
-
Package / Case:
16-WQFN Exposed Pad, CSP
-
Supplier Device Package:
16-LFCSP-WQ (4x4)
-
Base Part Number:
ADP1755
-
detail:
Linear Voltage Regulator IC 1 Output 1.2A 16-LFCSP-WQ (4x4)
