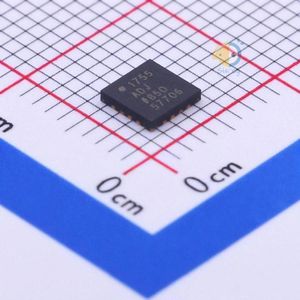

ADP1755ACPZ-R7
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | Analog Devices |
| Package | 16-WQFN Exposed Pad, CSP |
| Datasheet | ADP1754,55 |
| Description | Linear Voltage Regulator IC 1 Output 1.2A 16-LFCSP-WQ (4x4) |
فروشنده های ADP1755ACPZ-R7
فروشگاهی یافت نشد
مشخصات ADP1755ACPZ-R7
- RoHS true
- Category Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet Analog Devices ADP1755ACPZ-R7
- Output Type Adjustable
- Output Current 1.2A
- Output Voltage 0.75V~3.3V
- Dropout Voltage 0.2V@(1.2A)
- Output Polarity positive
- Number of Outputs 1
- Maximum Input Voltage 3.6V
- Operating Temperature -40°C~+125°C
- Quiescent Current (Ground Current) 800uA
- Package LFCSP-16-WQ
- Manufacturer Analog Devices
- Series -
- Packaging Cut Tape (CT)
- Part Status Active
- Output Configuration Positive
- Number of Regulators 1
- Voltage - Input (Max) 3.6V
- Voltage - Output (Min/Fixed) 0.75V
- Voltage - Output (Max) 3.3V
- Voltage Dropout (Max) 0.2V @ 1.2A
- Current - Output 1.2A
- Current - Quiescent (Iq) 800µA
- Current - Supply (Max) 1.4mA
- PSRR 65dB ~ 51dB (1kHz ~ 100kHz)
- Control Features Enable, Power Good, Soft Start
- Protection Features Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
- Mounting Type Surface Mount
- Package / Case 16-WQFN Exposed Pad, CSP
- Supplier Device Package 16-LFCSP-WQ (4x4)
- Base Part Number ADP1755
- detail Linear Voltage Regulator IC 1 Output 1.2A 16-LFCSP-WQ (4x4)
