دیتاشیت ADG1409YRUZ-REEL7

مشخصات دیتاشیت

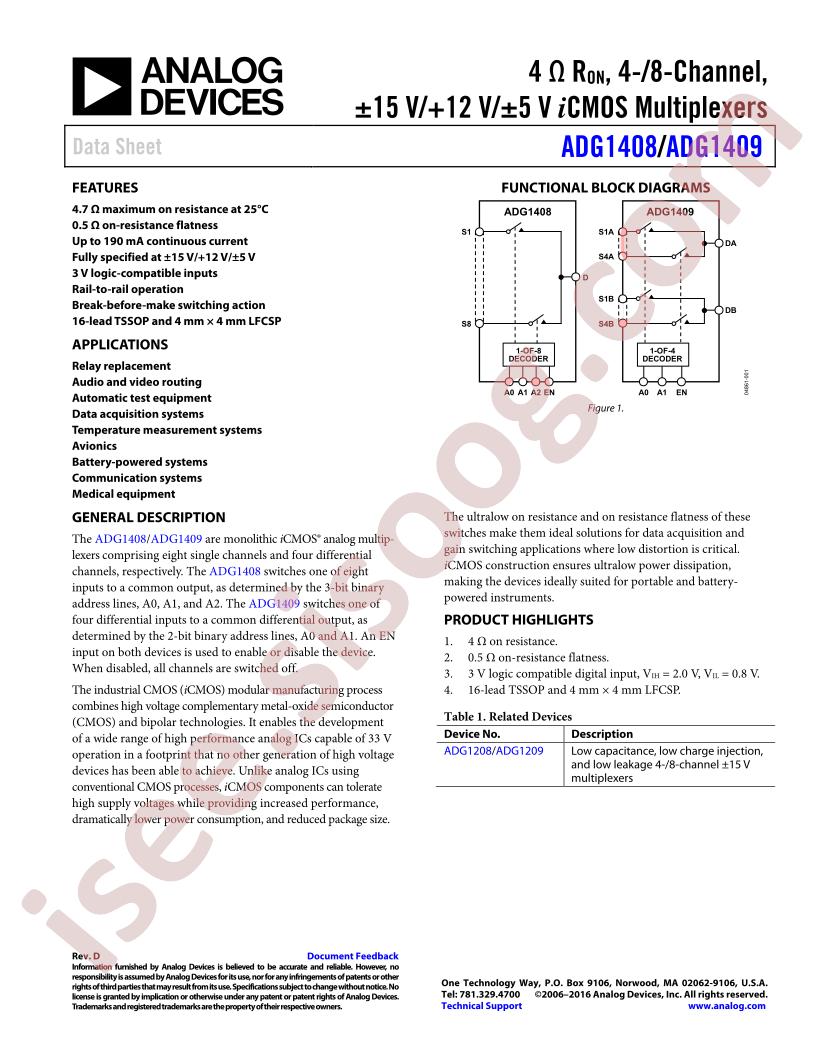

دانلود دیتاشیت ADG1408,09	ADG1408,09 Datasheet

RoHS: true
Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
Datasheet: Analog Devices ADG1409YRUZ-REEL7
Turn-on time: 120ns
Turn-off time: 120ns
Supply Voltage: 5V~16.5V
Switch Circuit: 单刀四掷(SP4T)
Number of Channels: 2
On-State Resistance (Max): 4.7Ω
Package: TSSOP-16
Manufacturer: Analog Devices
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Multiplexer/Demultiplexer Circuit: 4:1
Number of Circuits: 2
Channel-to-Channel Matching (ΔRon): 200mOhm
Voltage - Supply, Single (V+): 5V ~ 16.5V
Voltage - Supply, Dual (V±): ±4.5V ~ 16.5V
Switch Time (Ton, Toff) (Max): 120ns, 120ns
-3db Bandwidth: 115MHz
Charge Injection: -50pC
Channel Capacitance (CS(off), CD(off)): 14pF, 40pF
Current - Leakage (IS(off)) (Max): 200pA
Crosstalk: -70dB @ 1MHz
Operating Temperature: -40°C ~ 125°C (TA)
Mounting Type: Surface Mount
Package / Case: 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package: 16-TSSOP
Base Part Number: ADG1409
detail: 2 Circuit IC Switch 4:1 4.7Ohm 16-TSSOP
