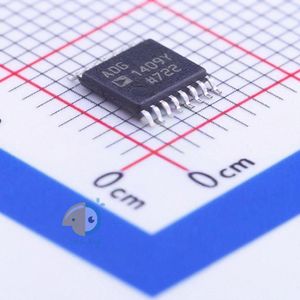

ADG1409YRUZ-REEL7
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | Analog Devices |
| Package | 16-TSSOP (0.173", 4.40mm Width) |
| Datasheet | ADG1408,09 |
| Description | 2 Circuit IC Switch 4:1 4.7Ohm 16-TSSOP |
فروشنده های ADG1409YRUZ-REEL7
فروشگاهی یافت نشد
مشخصات ADG1409YRUZ-REEL7
- RoHS true
- Category Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
- Datasheet Analog Devices ADG1409YRUZ-REEL7
- Turn-on time 120ns
- Turn-off time 120ns
- Supply Voltage 5V~16.5V
- Switch Circuit 单刀四掷(SP4T)
- Number of Channels 2
- On-State Resistance (Max) 4.7Ω
- Package TSSOP-16
- Manufacturer Analog Devices
- Series -
- Packaging Cut Tape (CT)
- Part Status Active
- Multiplexer/Demultiplexer Circuit 4:1
- Number of Circuits 2
- Channel-to-Channel Matching (ΔRon) 200mOhm
- Voltage - Supply, Single (V+) 5V ~ 16.5V
- Voltage - Supply, Dual (V±) ±4.5V ~ 16.5V
- Switch Time (Ton, Toff) (Max) 120ns, 120ns
- -3db Bandwidth 115MHz
- Charge Injection -50pC
- Channel Capacitance (CS(off), CD(off)) 14pF, 40pF
- Current - Leakage (IS(off)) (Max) 200pA
- Crosstalk -70dB @ 1MHz
- Operating Temperature -40°C ~ 125°C (TA)
- Mounting Type Surface Mount
- Package / Case 16-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package 16-TSSOP
- Base Part Number ADG1409
- detail 2 Circuit IC Switch 4:1 4.7Ohm 16-TSSOP
