دیتاشیت ADG1236YCPZ-500RL7

ADG1236

مشخصات دیتاشیت

نام دیتاشیت ADG1236
حجم فایل 351.418 کیلوبایت
نوع فایل pdf
تعداد صفحات 16

دانلود دیتاشیت ADG1236

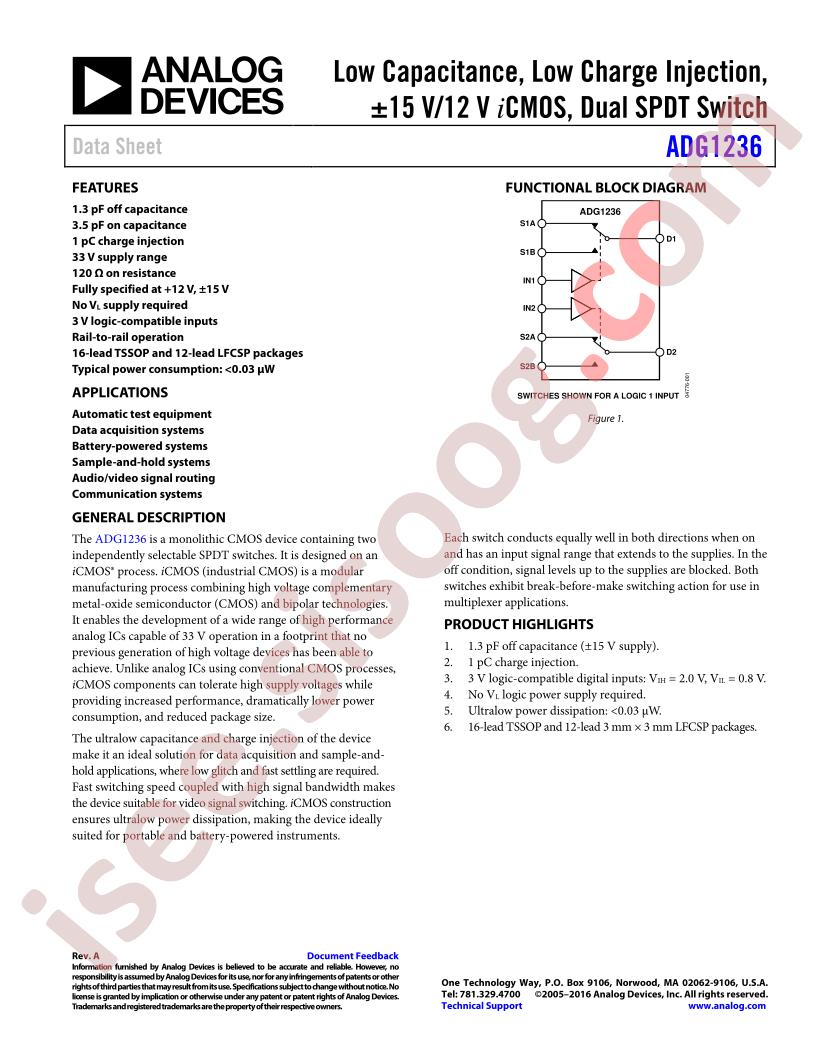

ADG1236 Datasheet

مشخصات

  • Manufacturer: Analog Devices Inc.
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Switch Circuit: SPDT
  • Multiplexer/Demultiplexer Circuit: 2:1
  • Number of Circuits: 2
  • On-State Resistance (Max): 190Ohm
  • Channel-to-Channel Matching (ΔRon): 3.5Ohm
  • Voltage - Supply, Single (V+): 12V
  • Voltage - Supply, Dual (V±): ±15V
  • Switch Time (Ton, Toff) (Max): 150ns, 90ns
  • -3db Bandwidth: 1GHz
  • Charge Injection: -1pC
  • Channel Capacitance (CS(off), CD(off)): 1.6pF
  • Current - Leakage (IS(off)) (Max): 100pA
  • Crosstalk: -85dB @ 1MHz
  • Operating Temperature: -40°C ~ 125°C (TA)
  • Mounting Type: Surface Mount
  • Package / Case: 12-WFQFN Exposed Pad, CSP
  • Supplier Device Package: 12-LFCSP-WQ (3x3)
  • Base Part Number: ADG1236
  • detail: 2 Circuit IC Switch 2:1 190Ohm 12-LFCSP-WQ (3x3)
