دیتاشیت ADG1211YCPZ-500RL7
مشخصات دیتاشیت
| نام دیتاشیت | ADG1211-13 |
|---|---|
| حجم فایل | 379.744 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 16 |
دانلود دیتاشیت ADG1211-13 |

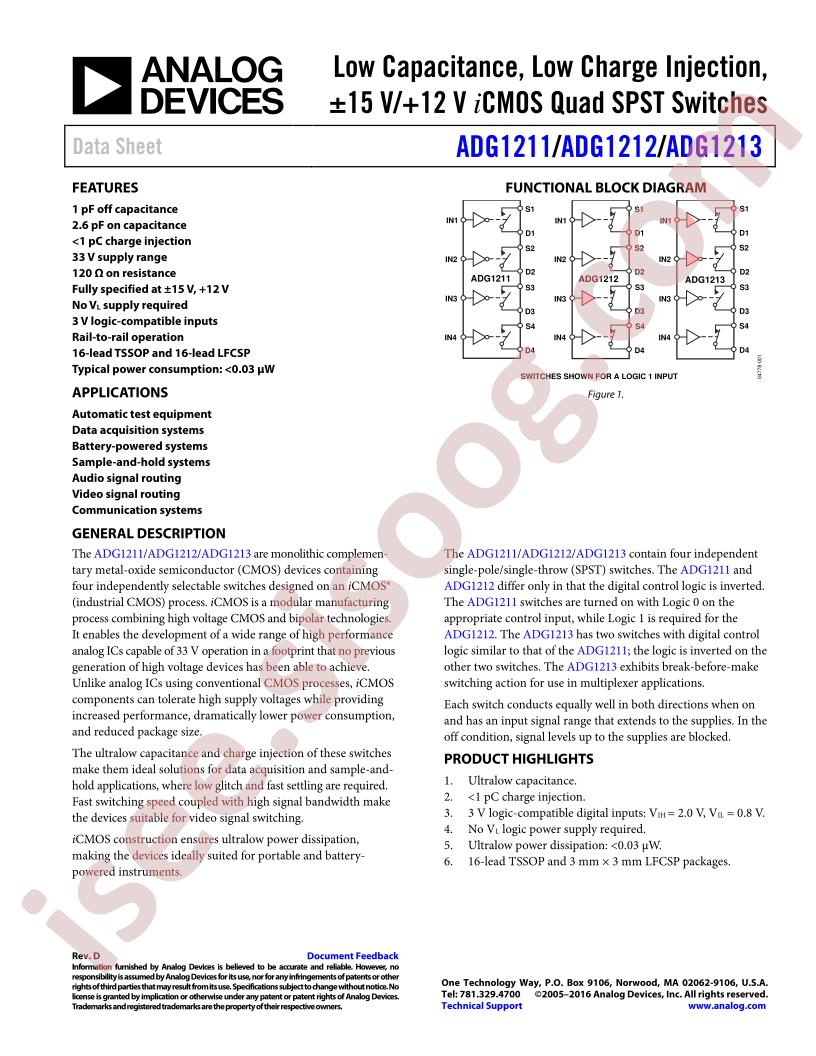

ADG1211-13 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
- Datasheet: Analog Devices ADG1211YCPZ-500RL7
- Turn-on time: 130ns
- Turn-off time: 115ns
- Supply Voltage: 5V~16.5V
- Switch Circuit: SPST(SPST)-Normally closed
- Number of Channels: 4
- On-State Resistance (Max): 190Ω
- Package: LFCSP-16
- Manufacturer: Analog Devices
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 1
- Channel-to-Channel Matching (ΔRon): 2.5Ohm
- Voltage - Supply, Single (V+): 5V ~ 16.5V
- Voltage - Supply, Dual (V±): ±4.5V ~ 16.5V
- Switch Time (Ton, Toff) (Max): 130ns, 115ns
- -3db Bandwidth: 1GHz
- Charge Injection: -0.3pC
- Channel Capacitance (CS(off), CD(off)): 1.1pF, 1.2pF
- Current - Leakage (IS(off)) (Max): 100pA
- Crosstalk: -90dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-WFQFN Exposed Pad, CSP
- Supplier Device Package: 16-LFCSP-WQ (3x3)
- Base Part Number: ADG1211
- detail: 1 Circuit IC Switch 1:1 190Ohm 16-LFCSP-WQ (3x3)
