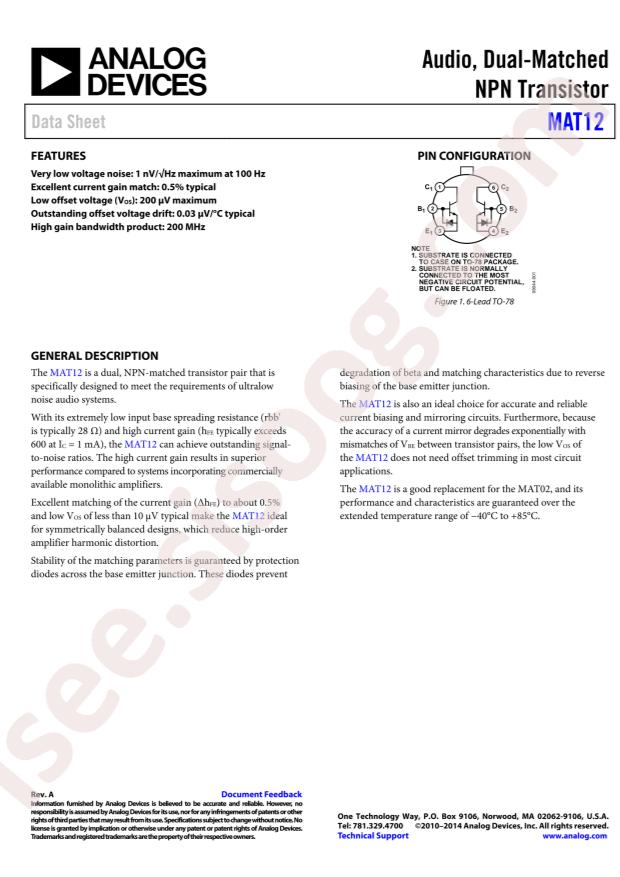

MAT12AHZ دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
MAT12AHZ
|
|
حجم فایل
|
73.861
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
12
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
Analog Devices MAT12AHZ
-
Transistor Type:
2 NPN(Bipolar Transistors)
-
Operating Temperature:
-65°C~+150°C@(Tj)
-
Collector Current (Ic):
20mA
-
Power Dissipation (Pd):
-
-
Transition Frequency (fT):
200MHz
-
DC Current Gain (hFE@Ic,Vce):
605@1mA
-
Collector Cut-Off Current (Icbo):
25pA
-
Collector-Emitter Breakdown Voltage (Vceo):
40V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
50mV@1mA,100uA
-
Package:
TO-78-6
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Box
-
Part Status:
Active
-
Current - Collector (Ic) (Max):
20mA
-
Voltage - Collector Emitter Breakdown (Max):
40V
-
Vce Saturation (Max) @ Ib, Ic:
200mV @ 100µA, 1mA
-
Current - Collector Cutoff (Max):
500pA
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
-
-
Power - Max:
-
-
Frequency - Transition:
200MHz
-
Mounting Type:
Through Hole
-
Package / Case:
TO-78-6 Metal Can
-
Supplier Device Package:
TO-78-6
-
detail:
Bipolar (BJT) Transistor Array 2 NPN (Dual) Matched Pair 40V 20mA 200MHz Through Hole TO-78-6
