ADP151 Series دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت ADP151 Series	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/Linear Voltage Regulators (LDO)

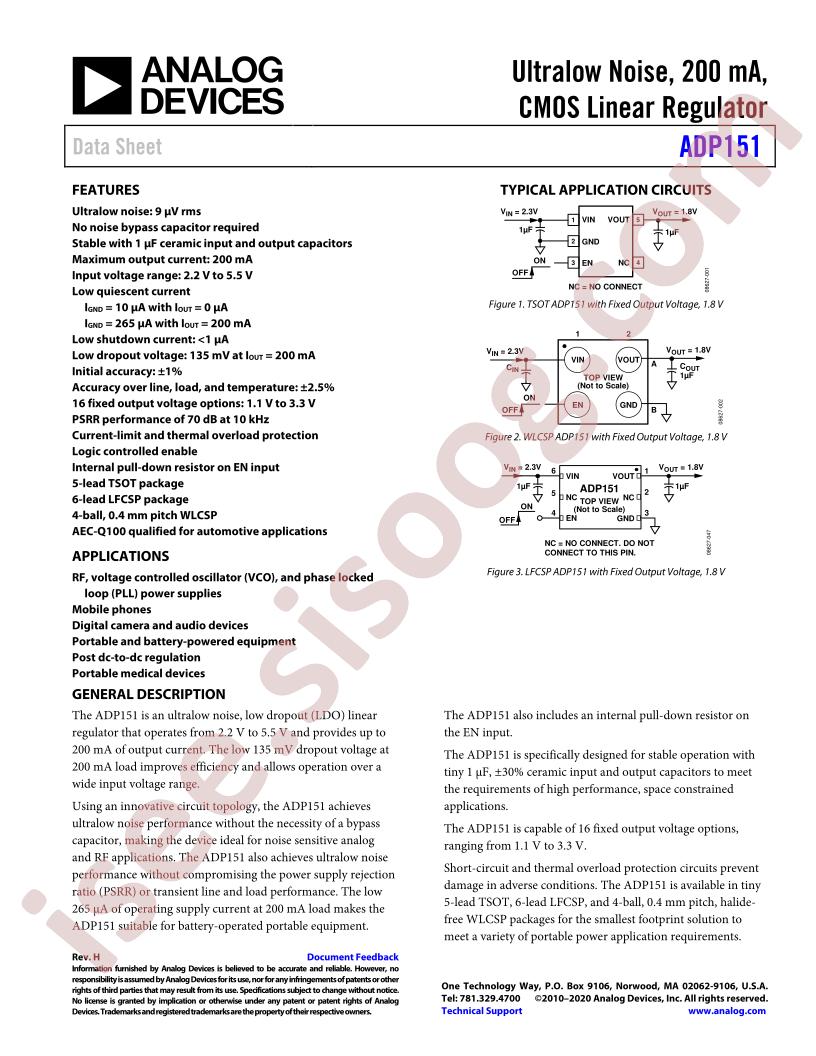

Datasheet: Analog Devices ADP151AUJZ-2.8-R7
Output Type: Fixed
Output Current: 200mA
Output Voltage: 2.8V
Dropout Voltage: 230mV@(200mA)
Output Polarity: Positive
Number of Outputs: 1
Maximum Input Voltage: 5.5V
Power Supply Rejection Ratio (PSRR): -
Package: SOT-23-5
Manufacturer: Analog Devices
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Output Configuration: Positive
Number of Regulators: 1
Voltage - Input (Max): 5.5V
Voltage - Output (Min/Fixed): 2.8V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.23V @ 200mA
Current - Output: 200mA
Current - Quiescent (Iq): 20µA
Current - Supply (Max): 350µA
PSRR: -
Control Features: Enable
Protection Features: Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: SOT-23-5 Thin, TSOT-23-5
Supplier Device Package: TSOT-5
Base Part Number: ADP151
detail: Linear Voltage Regulator IC 1 Output 200mA TSOT-5
