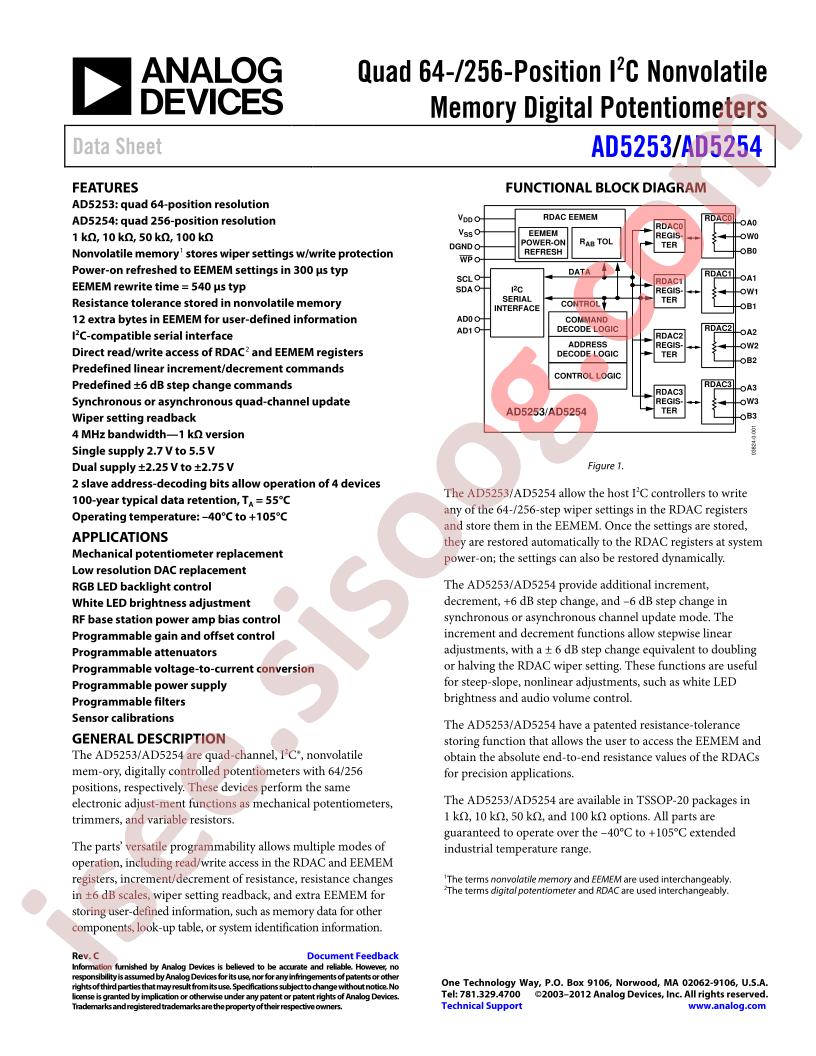

دیتاشیت AD5254BRUZ1-RL7
مشخصات دیتاشیت
| نام دیتاشیت |
AD5253,54
|
| حجم فایل |
583.254
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
32
|
مشخصات
-
RoHS:
true
-
Category:
ADC/DAC/Data Conversion/Digital Potentiometers
-
Datasheet:
Analog Devices AD5254BRUZ1-RL7
-
Precision:
±30%
-
Interface Type:
I2C
-
Number of Taps:
256
-
Supply Voltage:
2.7V~5.5V;2.25V~2.75V
-
Number of Channels:
4
-
Operating Temperature:
-40°C~+105°C
-
Resistance Value (Ohms):
1kΩ
-
Temperature Coefficient (Typ):
650ppm/°C
-
Package:
TSSOP-20
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Taper:
Linear
-
Configuration:
Potentiometer
-
Number of Circuits:
4
-
Resistance (Ohms):
1k
-
Interface:
I²C
-
Memory Type:
Non-Volatile
-
Voltage - Supply:
2.7V ~ 5.5V, ±2.25V ~ 2.75V
-
Features:
Selectable Address
-
Tolerance:
±30%
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
20-TSSOP
-
Package / Case:
20-TSSOP (0.173", 4.40mm Width)
-
Resistance - Wiper (Ohms) (Typ):
200
-
Base Part Number:
AD5254
-
detail:
Digital Potentiometer 1k Ohm 4 Circuit 256 Taps I²C Interface 20-TSSOP
