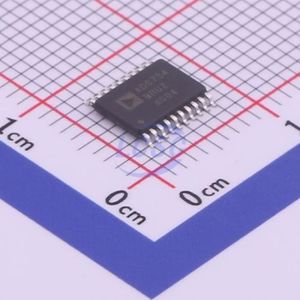

ADG734BRUZ-REEL
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | Analog Devices |
| Package | 20-TSSOP (0.173", 4.40mm Width) |
| Datasheet | ADG733,734 |
| Description | 4 Circuit IC Switch 2:1 4.5Ohm 20-TSSOP |
فروشنده های ADG734BRUZ-REEL
فروشگاهی یافت نشد
مشخصات ADG734BRUZ-REEL
- RoHS true
- Category Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
- Datasheet Analog Devices ADG734BRUZ-REEL
- Turn-on time 21ns
- Turn-off time 10ns
- Supply Voltage 1.8V~5.5V
- Switch Circuit SPDT(SPDT)
- Number of Channels 4
- On-State Resistance (Max) 4.5Ω
- Package TSSOP-20
- Manufacturer Analog Devices
- Series -
- Packaging Cut Tape (CT)
- Part Status Active
- Multiplexer/Demultiplexer Circuit 2:1
- Number of Circuits 4
- Channel-to-Channel Matching (ΔRon) -
- Voltage - Supply, Single (V+) 1.8V ~ 5.5V
- Voltage - Supply, Dual (V±) ±2.5V
- Switch Time (Ton, Toff) (Max) 21ns, 10ns (Typ)
- -3db Bandwidth 200MHz
- Charge Injection 5pC
- Channel Capacitance (CS(off), CD(off)) 11pF
- Current - Leakage (IS(off)) (Max) 100pA
- Crosstalk -67dB @ 1MHz
- Operating Temperature -40°C ~ 85°C (TA)
- Mounting Type Surface Mount
- Package / Case 20-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package 20-TSSOP
- Base Part Number ADG734
- detail 4 Circuit IC Switch 2:1 4.5Ohm 20-TSSOP
