دیتاشیت AD7812WYRUZ-RL

AD7811,12

مشخصات دیتاشیت

نام دیتاشیت AD7811,12
حجم فایل 336.167 کیلوبایت
نوع فایل pdf
تعداد صفحات 24

دانلود دیتاشیت AD7811,12

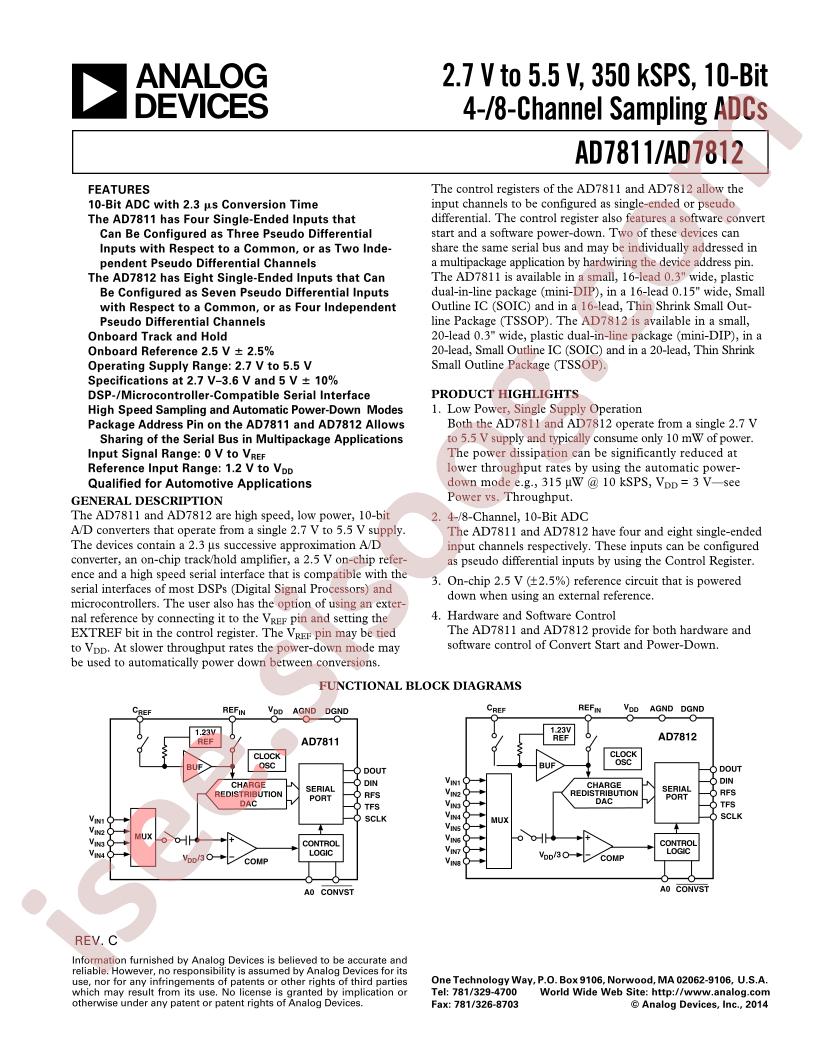

AD7811,12 Datasheet

مشخصات

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Analog Devices AD7812WYRUZ-RL
  • Interface: DSP
  • resolution: 10Bit
  • Supply Voltage: 2.7V~5.5V
  • number of channels: 7;8
  • sampling frequency: 350kHz
  • Operating Temperature: -40°C~+105°C
  • Package: TSSOP-20
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Number of Bits: 10
  • Sampling Rate (Per Second): 350k
  • Number of Inputs: 7, 8
  • Input Type: Pseudo-Differential, Single Ended
  • Data Interface: DSP
  • Configuration: MUX-S/H-ADC
  • Ratio - S/H:ADC: 1:1
  • Number of A/D Converters: 1
  • Architecture: SAR
  • Reference Type: External, Internal
  • Voltage - Supply, Analog: 2.7V ~ 5.5V
  • Voltage - Supply, Digital: 2.7V ~ 5.5V
  • Features: -
  • Package / Case: 20-TSSOP (0.173", 4.40mm Width)
  • Supplier Device Package: 20-TSSOP
  • Mounting Type: Surface Mount
  • Base Part Number: AD7812
  • detail: 10 Bit Analog to Digital Converter 7, 8 Input 1 SAR 20-TSSOP
