دیتاشیت AD5781ARUZ-REEL7

AD5781

مشخصات دیتاشیت

نام دیتاشیت AD5781
حجم فایل 900.86 کیلوبایت
نوع فایل pdf
تعداد صفحات 27

دانلود دیتاشیت AD5781

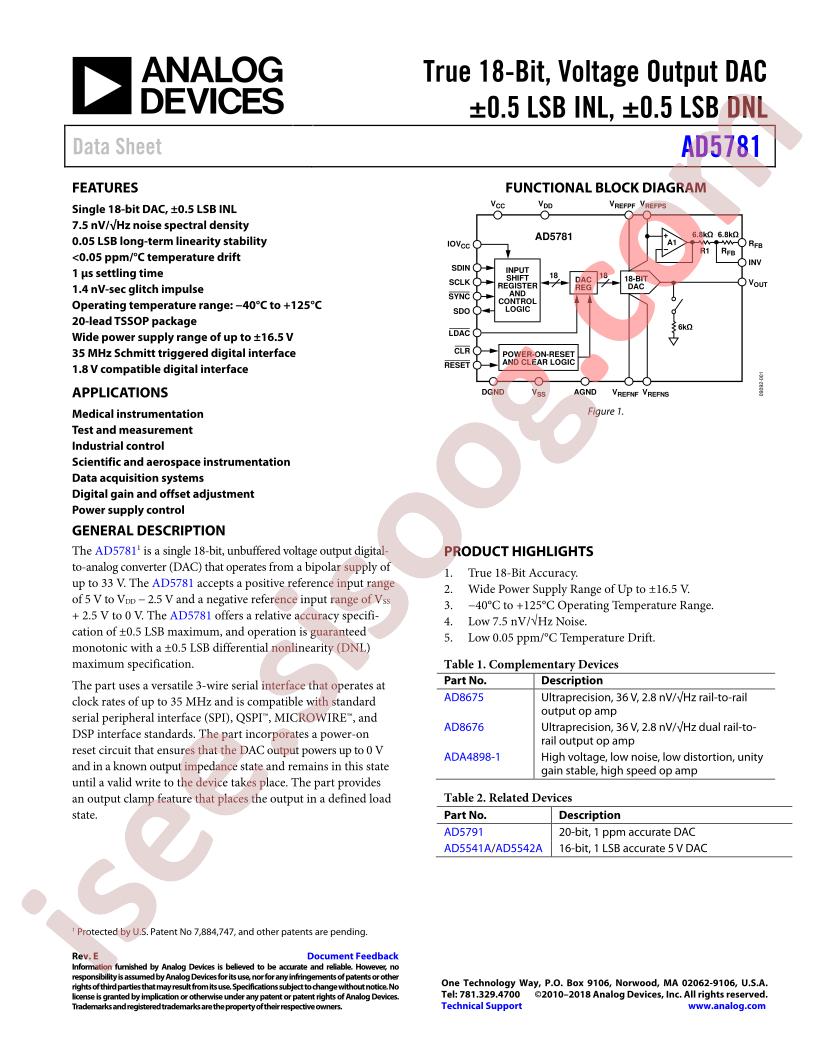

AD5781 Datasheet

مشخصات

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Analog Devices AD5781ARUZ-REEL7
  • Interface: SPI;DSP
  • Resolution: 18Bit
  • Output Type: Voltage-非缓冲
  • Settling Time: 1us
  • Supply Voltage: 2.7V~5.5V
  • Integral nonlinearity: ±2LSB;±0.5LSB
  • Operating Temperature: -40°C~+125°C
  • Package: TSSOP-20
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Number of Bits: 18
  • Number of D/A Converters: 1
  • Differential Output: No
  • Data Interface: SPI, DSP
  • Reference Type: External
  • Voltage - Supply, Analog: 7.5V ~ 16.5V, -2.5V ~ 16.5V
  • Voltage - Supply, Digital: 2.7V ~ 5.5V
  • INL/DNL (LSB): ±2, ±0.5
  • Architecture: R-2R
  • Package / Case: 20-TSSOP (0.173", 4.40mm Width)
  • Supplier Device Package: 20-TSSOP
  • Mounting Type: Surface Mount
  • Base Part Number: AD5781
  • detail: 18 Bit Digital to Analog Converter 1 20-TSSOP
