دیتاشیت ADG734BRU-REEL7

ADG733,734

مشخصات دیتاشیت

نام دیتاشیت ADG733,734
حجم فایل 209.421 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

دانلود دیتاشیت ADG733,734

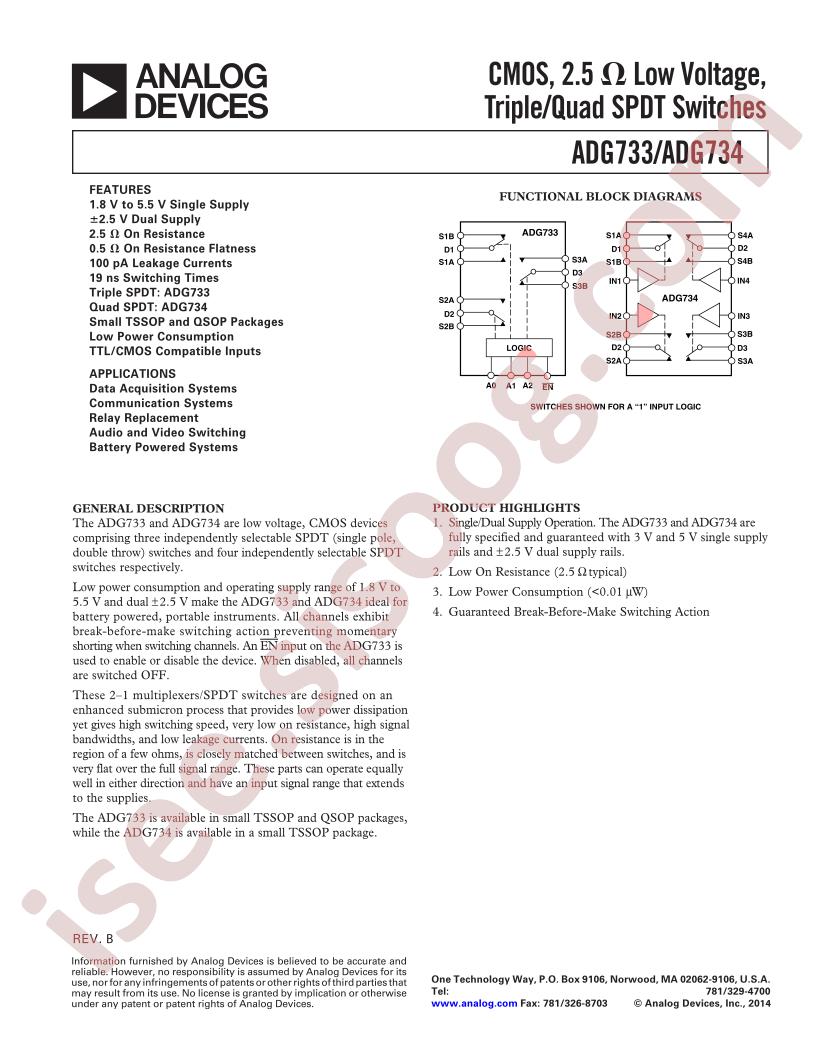

ADG733,734 Datasheet

مشخصات

  • Manufacturer: Analog Devices Inc.
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Obsolete
  • Switch Circuit: SPDT
  • Multiplexer/Demultiplexer Circuit: 2:1
  • Number of Circuits: 4
  • On-State Resistance (Max): 4.5Ohm
  • Channel-to-Channel Matching (ΔRon): -
  • Voltage - Supply, Single (V+): 1.8V ~ 5.5V
  • Voltage - Supply, Dual (V±): ±2.5V
  • Switch Time (Ton, Toff) (Max): 21ns, 10ns (Typ)
  • -3db Bandwidth: 200MHz
  • Charge Injection: 5pC
  • Channel Capacitance (CS(off), CD(off)): 11pF
  • Current - Leakage (IS(off)) (Max): 100pA
  • Crosstalk: -67dB @ 1MHz
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Mounting Type: Surface Mount
  • Package / Case: 20-TSSOP (0.173", 4.40mm Width)
  • Supplier Device Package: 20-TSSOP
  • Base Part Number: ADG734
  • detail: 4 Circuit IC Switch 2:1 4.5Ohm 20-TSSOP
