دیتاشیت MAX4660EUA+T

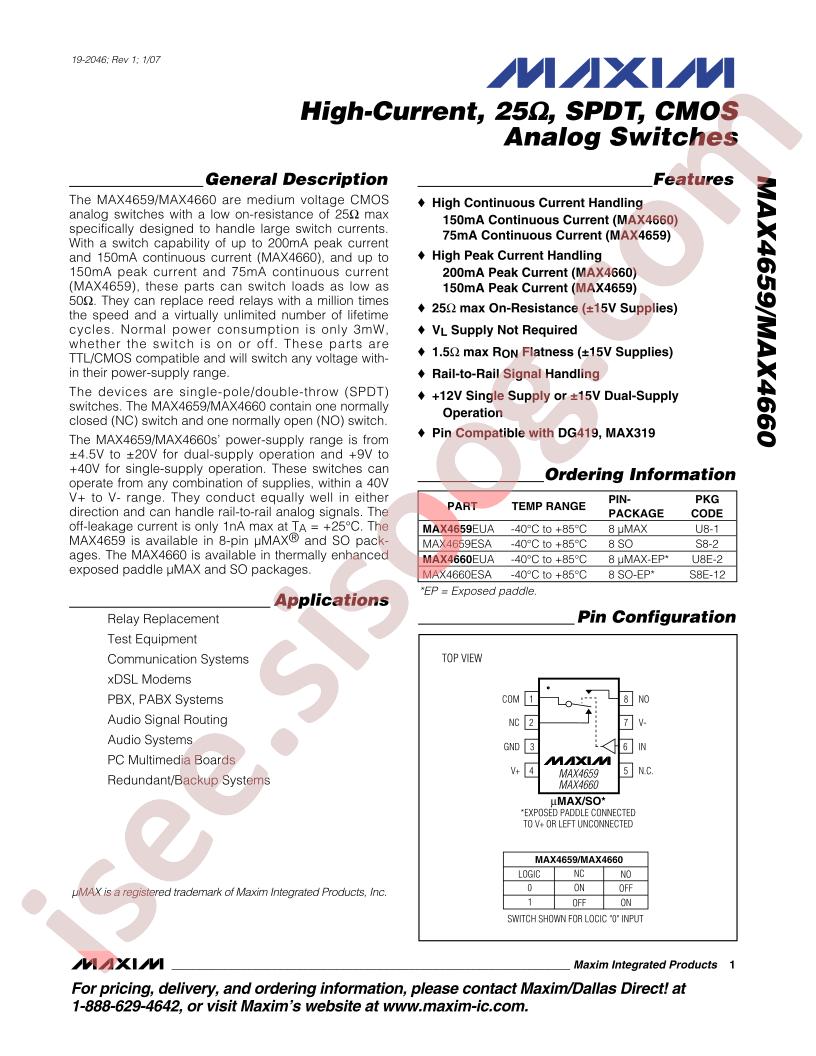

مشخصات دیتاشیت
| نام دیتاشیت |
MAX4659-60
|
| حجم فایل |
630.603
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
12
|
مشخصات
-
RoHS:
true
-
Category:
Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
-
Supply Voltage:
9V~40V
-
Switch Circuit:
SPDT(SPDT)
-
Number of Channels:
1
-
On-State Resistance (Max):
25Ω
-
Package:
UMAX-8-EP
-
Manufacturer:
Analog Devices Inc./Maxim Integrated
-
Multiplexer/Demultiplexer Circuit:
2:1
-
Part Status:
Active
-
Charge Injection:
1.5pC
-
-3db Bandwidth:
225MHz
-
Operating Temperature:
-40°C ~ 85°C (TA)
-
Voltage - Supply, Dual (V±):
±4.5V ~ 20V
-
Supplier Device Package:
8-uMax-EP
-
Package / Case:
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
-
Switch Time (Ton, Toff) (Max):
-
-
Packaging:
Cut Tape (CT)
-
Channel-to-Channel Matching (ΔRon):
400mOhm
-
Voltage - Supply, Single (V+):
9V ~ 40V
-
Channel Capacitance (CS(off), CD(off)):
6pF
-
Mounting Type:
Surface Mount
-
Series:
-
-
Crosstalk:
-76dB @ 1MHz
-
Number of Circuits:
1
-
Current - Leakage (IS(off)) (Max):
1nA
-
Base Part Number:
MAX4660
-
detail:
1 Circuit IC Switch 2:1 25Ohm 8-uMax-EP
