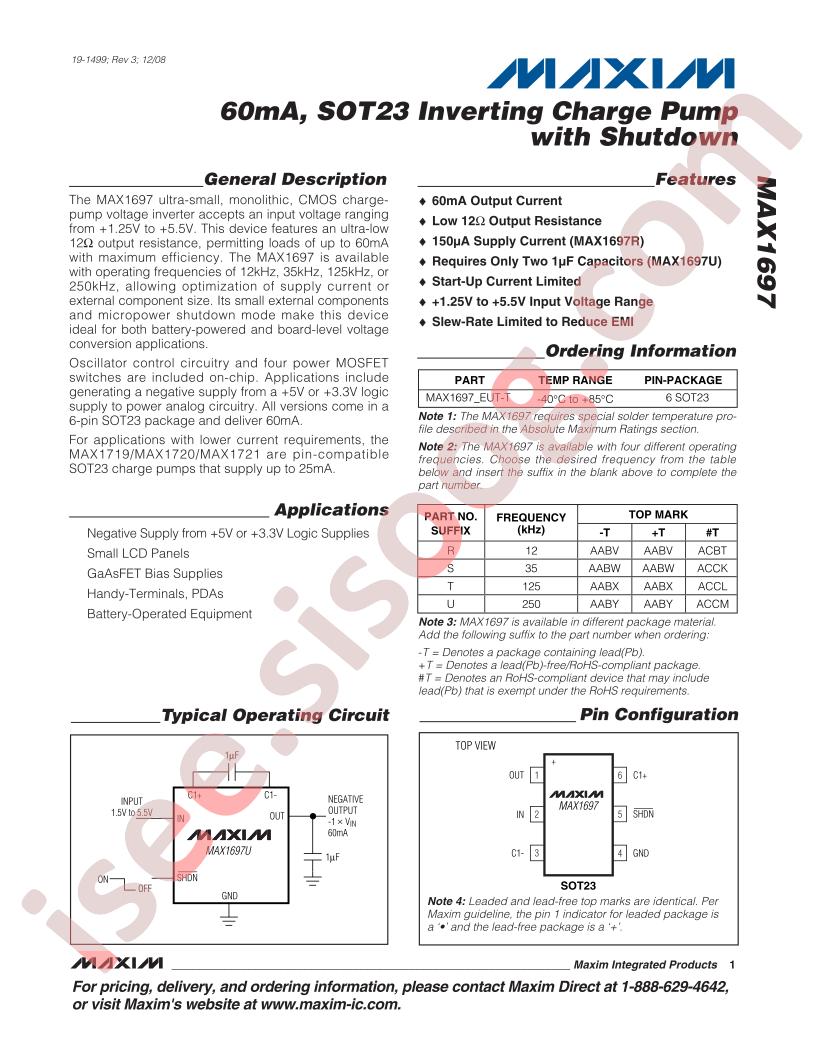

MAX1697 13 pages

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: -
Topology: -
Datasheet: Analog Devices Inc./Maxim Integrated MAX1697REUT+T
Output Type: Fixed
Input Voltage: 1.5V~5.5V
Number of Outputs: 1
Switching Frequency: 21kHz
Output Current (Max): 60mA
Operating Temperature: -40°C~+85°C@(TA)
Synchronous Rectification: NO
Package: SOT-23-6
Manufacturer: Analog Devices Inc./Maxim Integrated
Voltage - Input (Max): 5.5V
Voltage - Input (Min): 1.5V
Output Configuration: Positive or Negative
Supplier Device Package: SOT-23-6
Package / Case: SOT-23-6
Frequency - Switching: 6kHz ~ 21kHz
Current - Output: 60mA
Part Status: Active
Series: -
Voltage - Output (Max): -
Base Part Number: MAX1697
Mounting Type: Surface Mount
Synchronous Rectifier: No
Voltage - Output (Min/Fixed): -Vin, 2Vin
Packaging: Cut Tape (CT)
detail: Charge Pump Switching Regulator IC Positive or Negative Fixed -Vin, 2Vin 1 Output 60mA SOT-23-6
