- دیتاشیت Part Numbering System
Part Numbering System دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | Part Numbering System |
|---|---|
| حجم فایل | 107.748 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 7 |
دانلود دیتاشیت Part Numbering System |
دانلود دیتاشیت |
|---|
سایر مستندات
EE-Sim Design, Simulation Environment Guide 55 pages

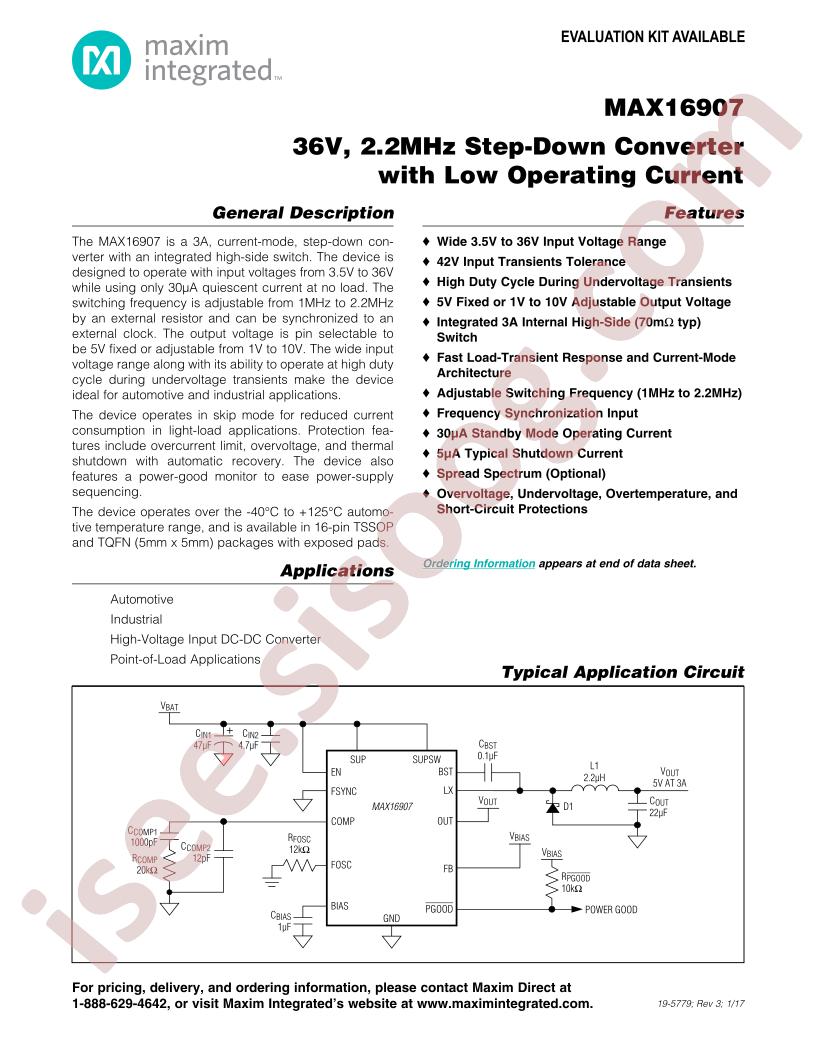

MAX16907 18 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Step-down type
- Topology: Step-down
- Output Type: 可调和固定
- Input Voltage: 3.5V~36V
- Output Voltage: 1V~10V
- Number of Outputs: 1
- Switching Frequency: 2.2MHz
- Output Current (Max): 3A
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: NO
- Package: HTSSOP-16
- Manufacturer: Analog Devices Inc./Maxim Integrated
- Voltage - Input (Max): 36V
- Voltage - Input (Min): 3.5V
- Output Configuration: Positive
- Supplier Device Package: 16-TSSOP-EP
- Package / Case: 16-TSSOP (0.173", 4.40mm Width) Exposed Pad
- Frequency - Switching: 2.2MHz
- Current - Output: 3A
- Part Status: Active
- Series: Automotive, AEC-Q100
- Voltage - Output (Max): 10V
- Base Part Number: MAX16907
- Mounting Type: Surface Mount
- Synchronous Rectifier: No
- Voltage - Output (Min/Fixed): 1V (5V)
- Packaging: Tape & Reel (TR)
- detail: Buck Switching Regulator IC Positive Adjustable (Fixed) 1V (5V) 1 Output 3A 16-TSSOP (0.173", 4.40mm Width) Exposed Pad
