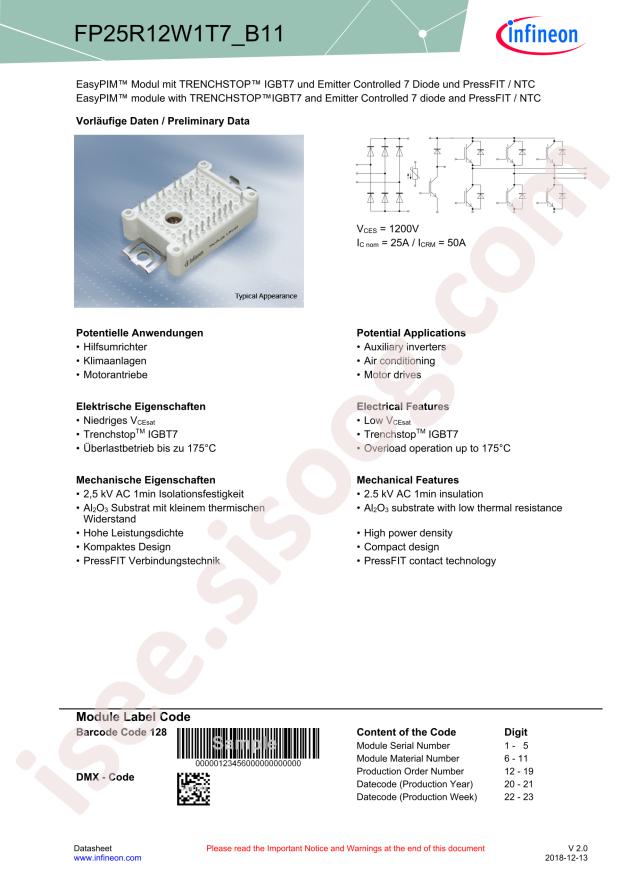

FP25R12W1T7 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
FP25R12W1T7
|
|
حجم فایل
|
65.365
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
14
|
مشخصات فنی
-
RoHS:
true
-
Type:
IGBT Modules
-
Category:
Triode/MOS Tube/Transistor/IGBTs
-
Datasheet:
Infineon Technologies FP25R12W1T7
-
Operating Temperature:
-40°C~+175°C@(Tvjop)
-
Collector Current (Ic):
25A
-
Power Dissipation (Pd):
-
-
Turn?on Delay Time (Td(on)):
37ns
-
Input Capacitance (Cies@Vce):
4.77nF@25V
-
Turn?on Switching Loss (Eon):
1.55mJ
-
Diode Forward Voltage (Vf@If):
1.83V@25A
-
Total Gate Charge (Qg@Ic,Vge):
-
-
Turn?off Delay Time (Td(off)):
200ns
-
Pulsed Collector Current (Icm):
50A
-
Turn?off Switching Loss (Eoff):
2.1mJ
-
Diode Reverse Recovery Time (Trr):
-
-
Collector Cut-Off Current (Ices@Vce):
5.6uA@1.2kV
-
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5.8V@500uA
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Vge):
1.6V@25A,15V
-
Package:
AG-EASY1B-1
-
Manufacturer:
Infineon Technologies
