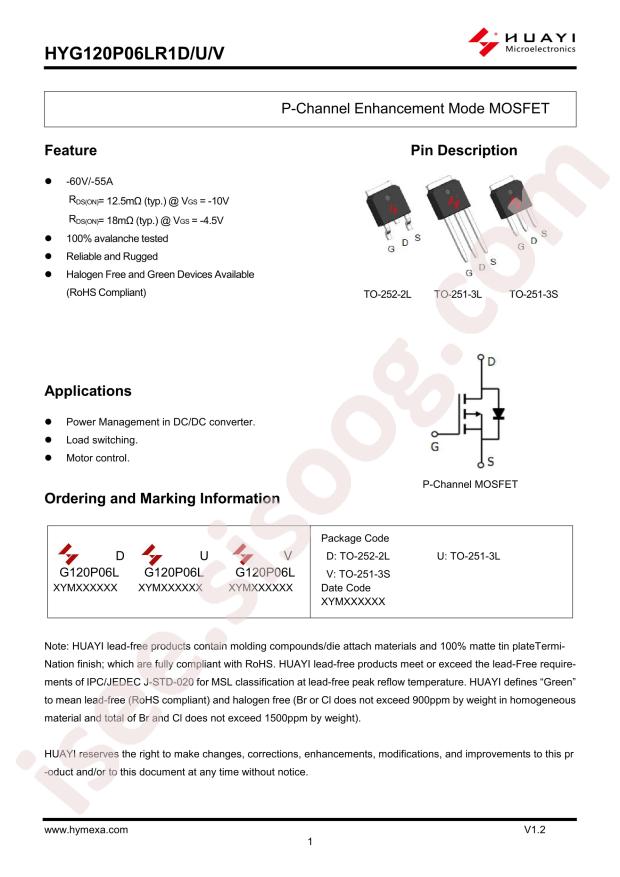

HYG120P06LR1D دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
HYG120P06LR1D
|
|
حجم فایل
|
67.486
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
11
|
مشخصات فنی
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
HUAYI HYG120P06LR1D
-
Operating Temperature:
+175°C@(Tj)
-
Power Dissipation (Pd):
75W
-
Total Gate Charge (Qg@Vgs):
46.3nC@10V
-
Drain Source Voltage (Vdss):
60V
-
Input Capacitance (Ciss@Vds):
4.882nF@25V
-
Continuous Drain Current (Id):
55A
-
Gate Threshold Voltage (Vgs(th)@Id):
1.8V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
195pF@25V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
12.5mΩ@10V,20A
-
Package:
TO-252
-
Manufacturer:
HUAYI
