HYG080NH03LR1C1 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
HYG080NH03LR1C1
|
|
حجم فایل
|
69.184
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
12
|
مشخصات فنی
-
RoHS:
true
-
Type:
2 N-Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-

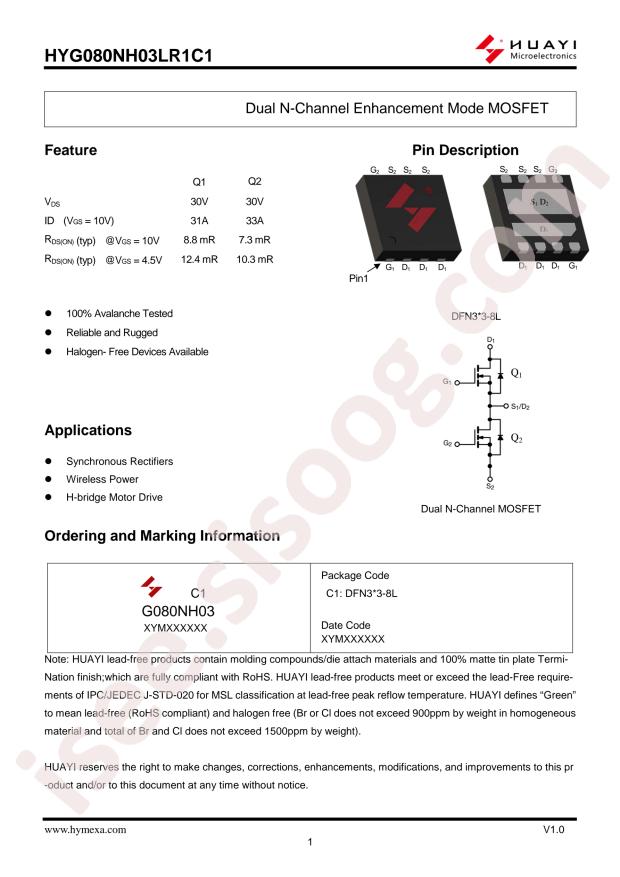

Datasheet:
HUAYI HYG080NH03LR1C1
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
21.4W
-
Total Gate Charge (Qg@Vgs):
16nC@10V;23.2nC@10V
-
Drain Source Voltage (Vdss):
30V
-
Input Capacitance (Ciss@Vds):
709.1pF@25V;966pF@25V
-
Continuous Drain Current (Id):
31A;33A
-
Gate Threshold Voltage (Vgs(th)@Id):
1.6V@250uA;1.7V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
70.7pF@25V;101pF@25V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
8.8mΩ@10V,10A;7.3mΩ@10V,10A
-

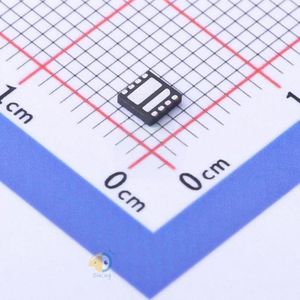

Package:
DFN-8(3x3)
-
Manufacturer:
HUAYI
