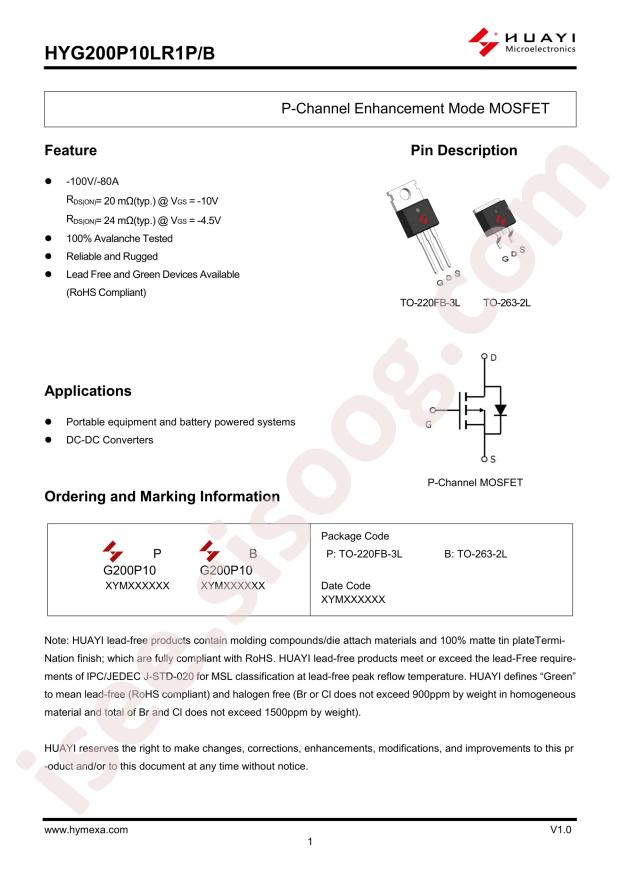

HYG200P10LR1P دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
HYG200P10LR1P
|
|
حجم فایل
|
66.526
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
10
|
مشخصات فنی
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
HUAYI HYG200P10LR1P
-
Operating Temperature:
+175°C@(Tj)
-
Power Dissipation (Pd):
214W
-
Total Gate Charge (Qg@Vgs):
83nC@10V
-
Drain Source Voltage (Vdss):
100V
-
Input Capacitance (Ciss@Vds):
11.52nF@50V
-
Continuous Drain Current (Id):
80A
-
Gate Threshold Voltage (Vgs(th)@Id):
1.8V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
91pF@50V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
20mΩ@10V,40A
-

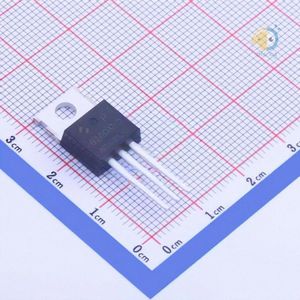

Package:
TO-220
-
Manufacturer:
HUAYI
