2DB1132R-13 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
2DB1132R-13
|
|
حجم فایل
|
86.283
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
Diodes Incorporated 2DB1132R-13
-
Transistor Type:
PNP
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Collector Current (Ic):
1A
-
Power Dissipation (Pd):
1W
-
Transition Frequency (fT):
190MHz
-
DC Current Gain (hFE@Ic,Vce):
180@100mA,3V
-
Collector Cut-Off Current (Icbo):
500nA
-
Collector-Emitter Breakdown Voltage (Vceo):
32V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
500mV@50mA,500mA
-

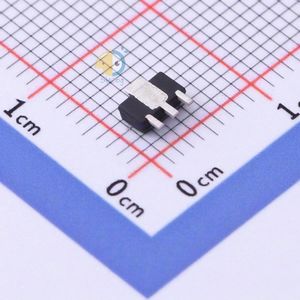

Package:
SOT-89-3
-
Manufacturer:
Diodes Incorporated
