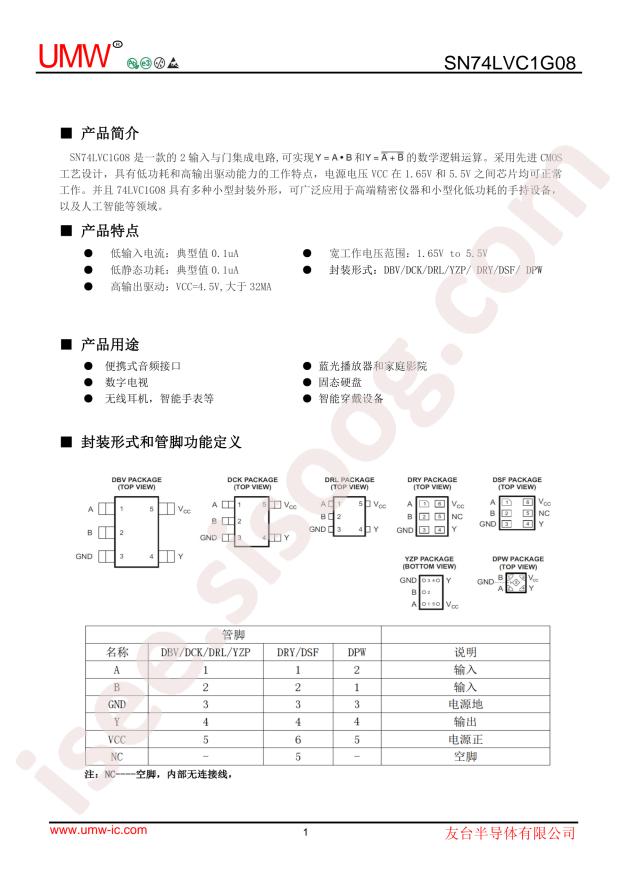

SN74LVC1G08DBVR Datasheet
Datasheet specifications
| Datasheet's name | SN74LVC1G08DBVR |
|---|---|
| File size | 60.891 KB |
| File type | |
| Number of pages | 10 |
Download Datasheet SN74LVC1G08DBVR |
Download Datasheet |
|---|
Other documentations
Technical specifications
- RoHS: true
- Series: 74LVC
- Category: Logic ICs/Gates

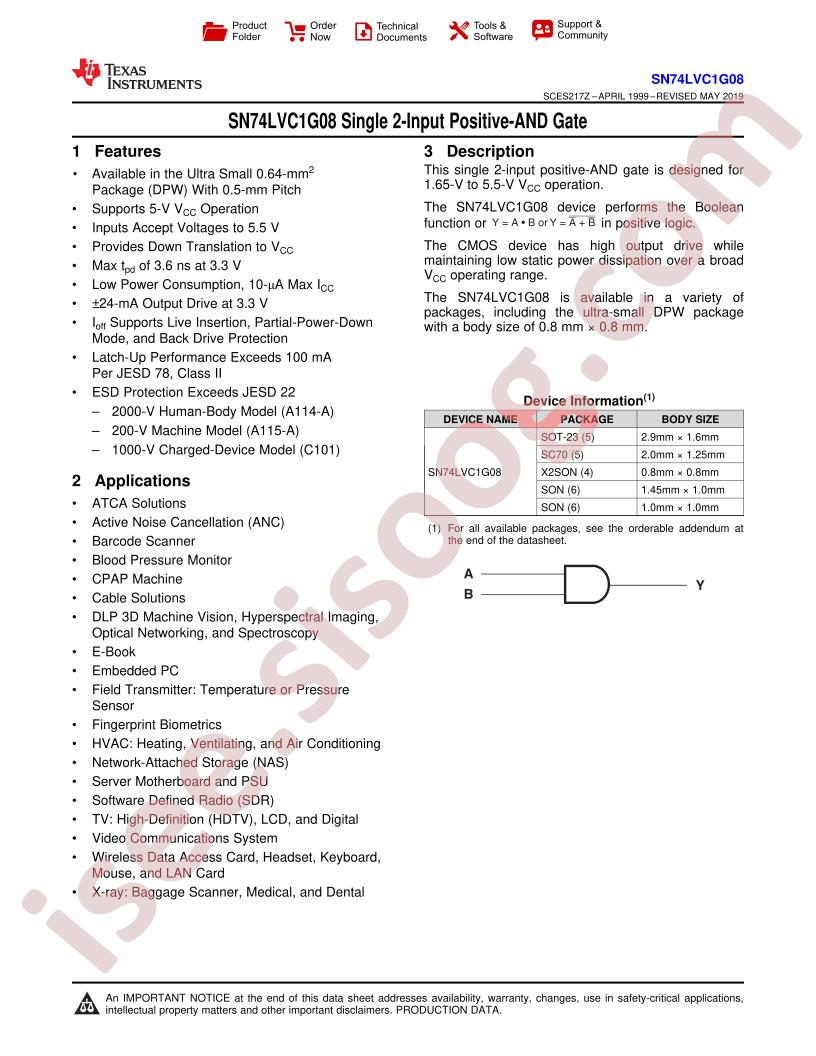

- Datasheet: Texas Instruments SN74LVC1G08DBVR
- Sink Current: 32mA
- Source Current: 32mA
- Supply Voltage: 1.65V~5.5V
- Logic Gate Type: And
- Number of Channels: 1
- Operating Temperature: -40°C~+125°C
- Propagation Delay Time: 4ns@5V,50pF
- Quiescent Current (Max): 10uA
- Package: SOT-23-5
- Manufacturer: Texas Instruments
- High Level Range (VIH): 1.7V
- Logic Level - High: -
- Number of Circuits: 1
- Number of Inputs: 2
- Logic Level - Low: -
- Base Part Number: SN74LVC1G
- Max Propagation Delay @ V, Max CL: 4ns @ 5V, 50pF
- Logic Type: AND Gate
- Current - Output High, Low: 32mA, 32mA
- Supplier Device Package: SOT-23-5
- Features: -
- Part Status: Active
- Current - Quiescent (Max): 10µA
- Package / Case: SC-74A, SOT-753
- Mounting Type: Surface Mount
- Packaging: Cut Tape (CT)
- Voltage - Supply: 1.65V ~ 5.5V
- detail: AND Gate IC 1 Channel SOT-23-5
