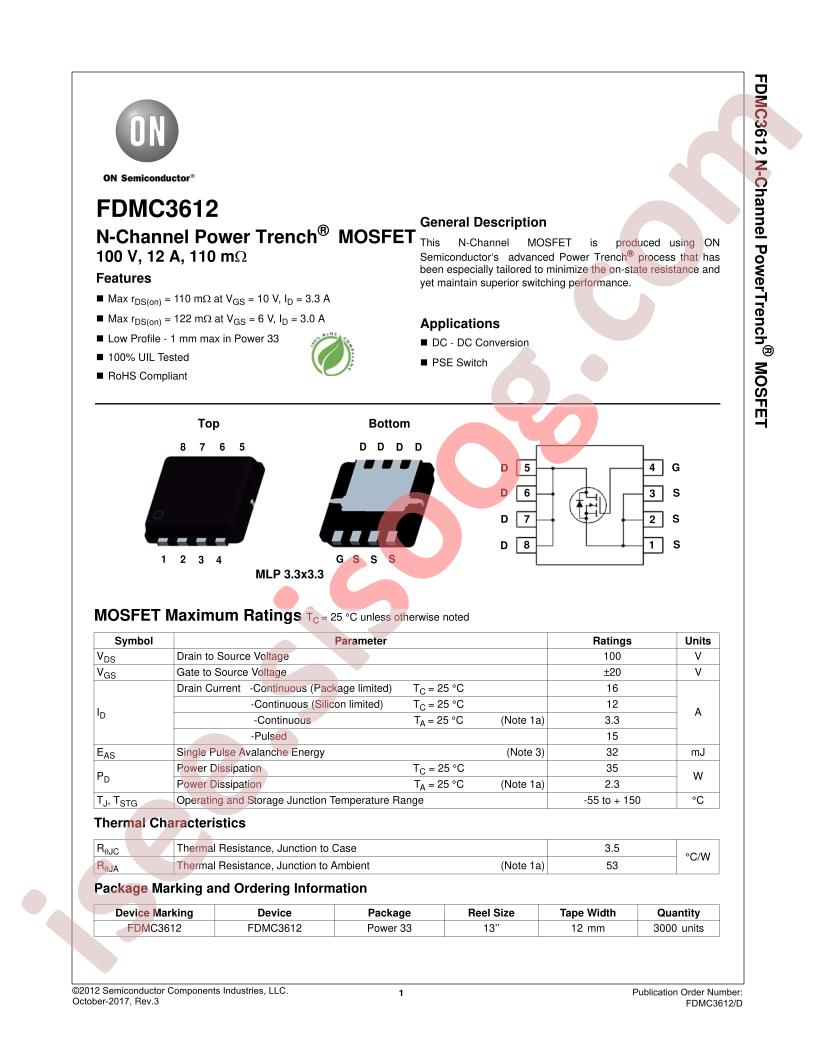

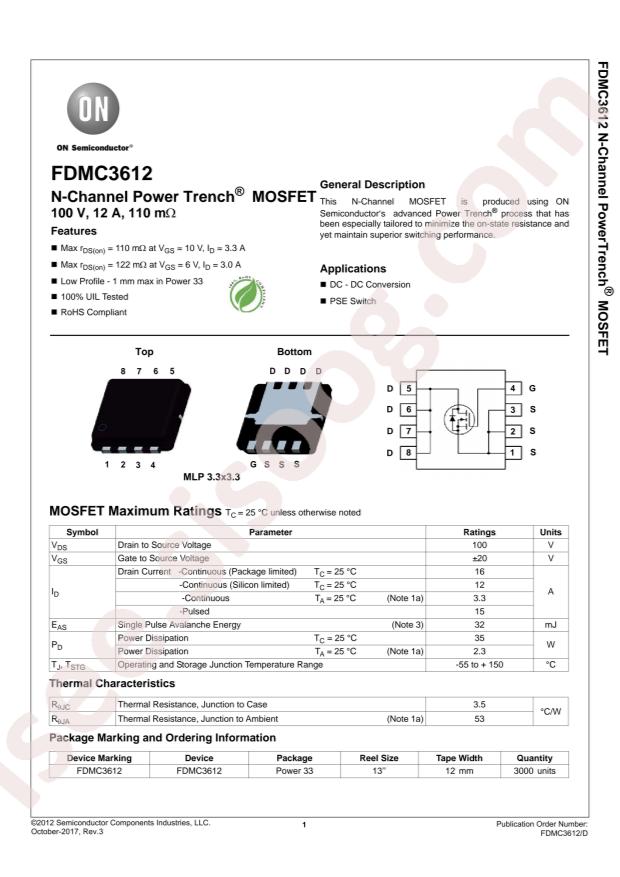

دیتاشیت FDMC3612
مشخصات دیتاشیت
| نام دیتاشیت |
FDMC3612
|
| حجم فایل |
259.916
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
6
|
مشخصات
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi FDMC3612
-
Power Dissipation (Pd):
35W
-
Drain Source Voltage (Vdss):
100V
-
Continuous Drain Current (Id):
12A
-
Gate Threshold Voltage (Vgs(th)@Id):
4V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
110mΩ@10V,3.3A
-
Package:
Power-33
-
Manufacturer:
onsemi
-
Series:
PowerTrench®
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
100V
-
Current - Continuous Drain (Id) @ 25°C:
3.3A (Ta), 16A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
6V, 10V
-
Rds On (Max) @ Id, Vgs:
110mOhm @ 3.3A, 10V
-
Vgs(th) (Max) @ Id:
4V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
21nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
880pF @ 50V
-
FET Feature:
-
-
Power Dissipation (Max):
2.3W (Ta), 35W (Tc)
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
8-MLP (3.3x3.3)
-
Package / Case:
8-PowerWDFN
-
Base Part Number:
FDMC36
