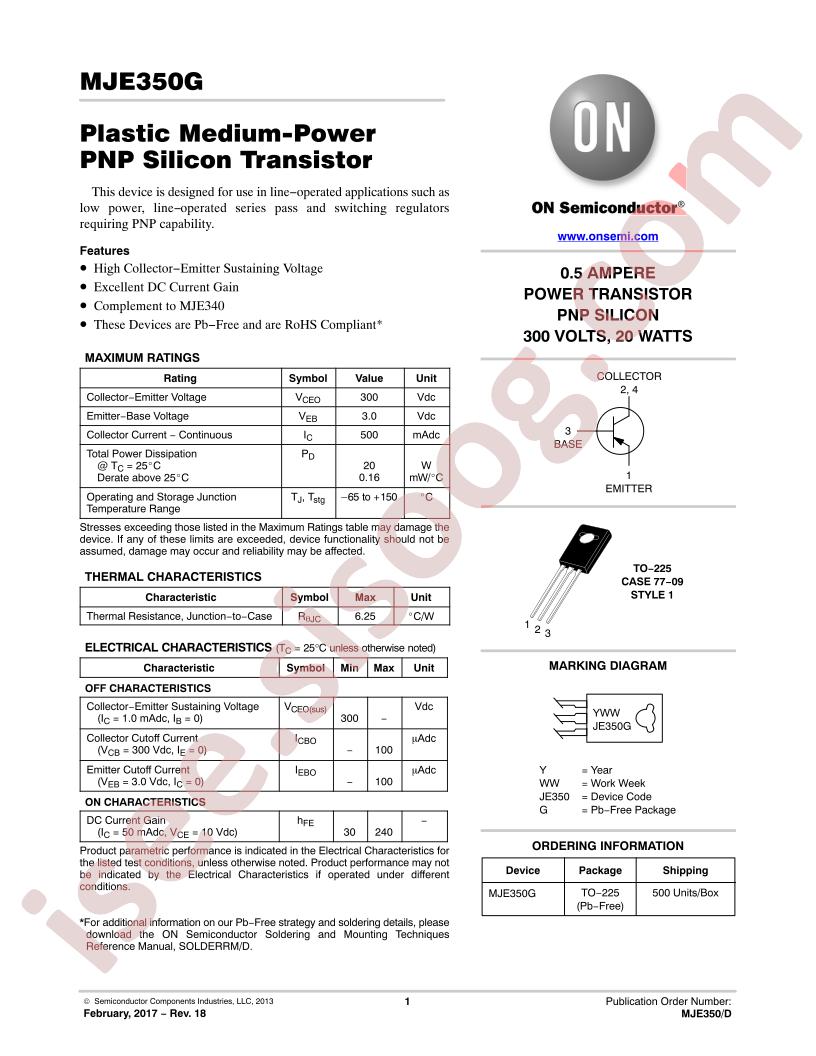

دیتاشیت MJE350G
مشخصات دیتاشیت
| نام دیتاشیت |
MJE350
|
| حجم فایل |
142.611
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
3
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
onsemi MJE350G
-
Transistor Type:
PNP
-
Operating Temperature:
-65°C~+150°C@(Tj)
-
Collector Current (Ic):
500mA
-
Power Dissipation (Pd):
20W
-
Transition Frequency (fT):
-
-
DC Current Gain (hFE@Ic,Vce):
30@50mA,10V
-
Collector Cut-Off Current (Icbo):
100uA
-
Collector-Emitter Breakdown Voltage (Vceo):
300V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
-
-

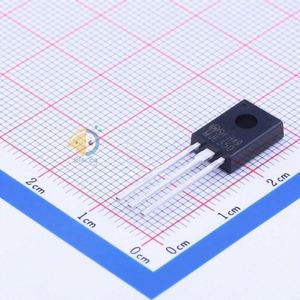

Package:
TO-225
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Bulk
-
Part Status:
Active
-
Current - Collector (Ic) (Max):
500mA
-
Voltage - Collector Emitter Breakdown (Max):
300V
-
Vce Saturation (Max) @ Ib, Ic:
-
-
Current - Collector Cutoff (Max):
100µA (ICBO)
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
30 @ 50mA, 10V
-
Power - Max:
20W
-
Frequency - Transition:
-
-
Mounting Type:
Through Hole
-
Package / Case:
TO-225AA, TO-126-3
-
Supplier Device Package:
TO-225AA
-
Base Part Number:
MJE350
