دیتاشیت HCPL0601

مشخصات دیتاشیت

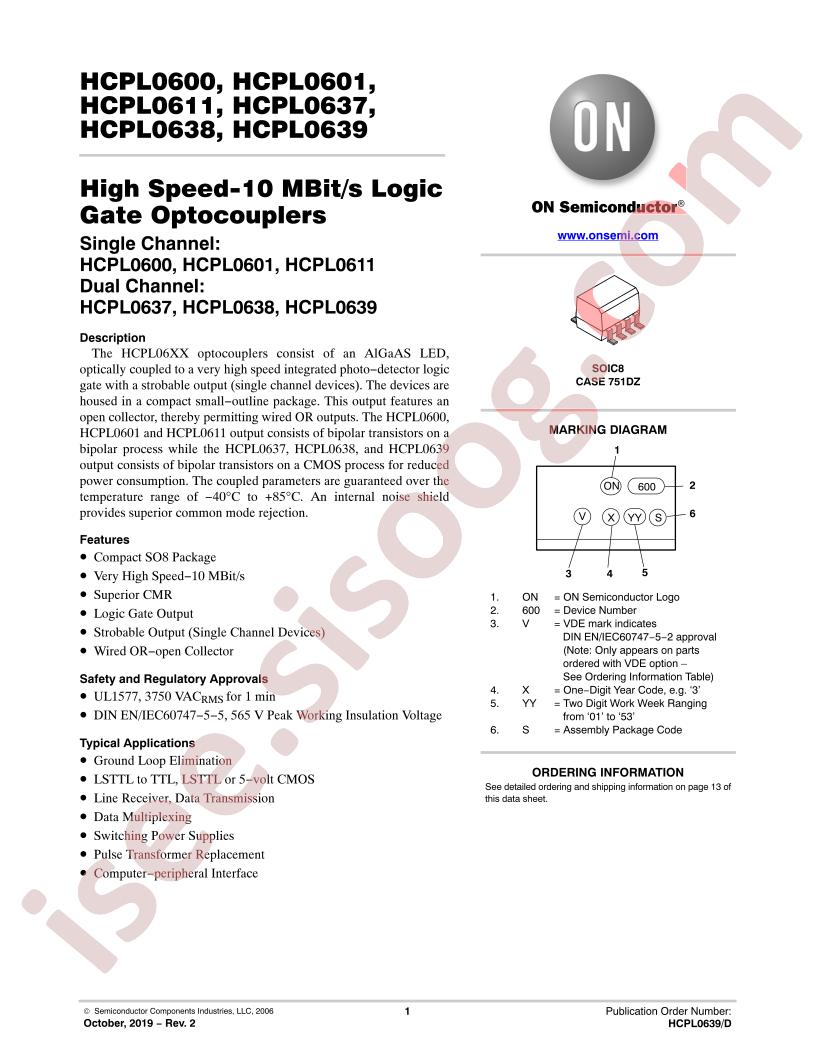

دانلود دیتاشیت HCPL0600-01,11,37-39	HCPL0600-01,11,37-39 Datasheet

RoHS: true
Category: Optocoupler/LED/Digital Tube/Photoelectric Device/Optocouplers - Logic Output
Data Rate: 10Mbit/s
Datasheet: onsemi HCPL0601
Input Type: DC
Supply Voltage: 4.5V~5.5V
Number of Channels: 1
Operating Temperature: -40°C~+85°C
Isolation Voltage(rms): 3750V
Propagation Delay tpLH/tpHL: 75ns
Common Mode Transient Immunity (CMTI): 10kV/us
Package: SOP-8
Manufacturer: onsemi
Series: -
Packaging: Tube
Part Status: Active
Inputs - Side 1/Side 2: 1/0
Voltage - Isolation: 3750Vrms
Common Mode Transient Immunity (Min): 10kV/µs
Output Type: Open Collector
Current - Output / Channel: 50mA
Propagation Delay tpLH / tpHL (Max): 75ns, 75ns
Rise / Fall Time (Typ): 50ns, 12ns
Voltage - Forward (Vf) (Typ): 1.75V (Max)
Current - DC Forward (If) (Max): 50mA
Voltage - Supply: 4.5V ~ 5.5V
Mounting Type: Surface Mount
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package: 8-SOIC
Base Part Number: HCPL06
detail: Logic Output Optoisolator 10Mbps Open Collector 3750Vrms 1 Channel 10kV/µs CMTI 8-SOIC
