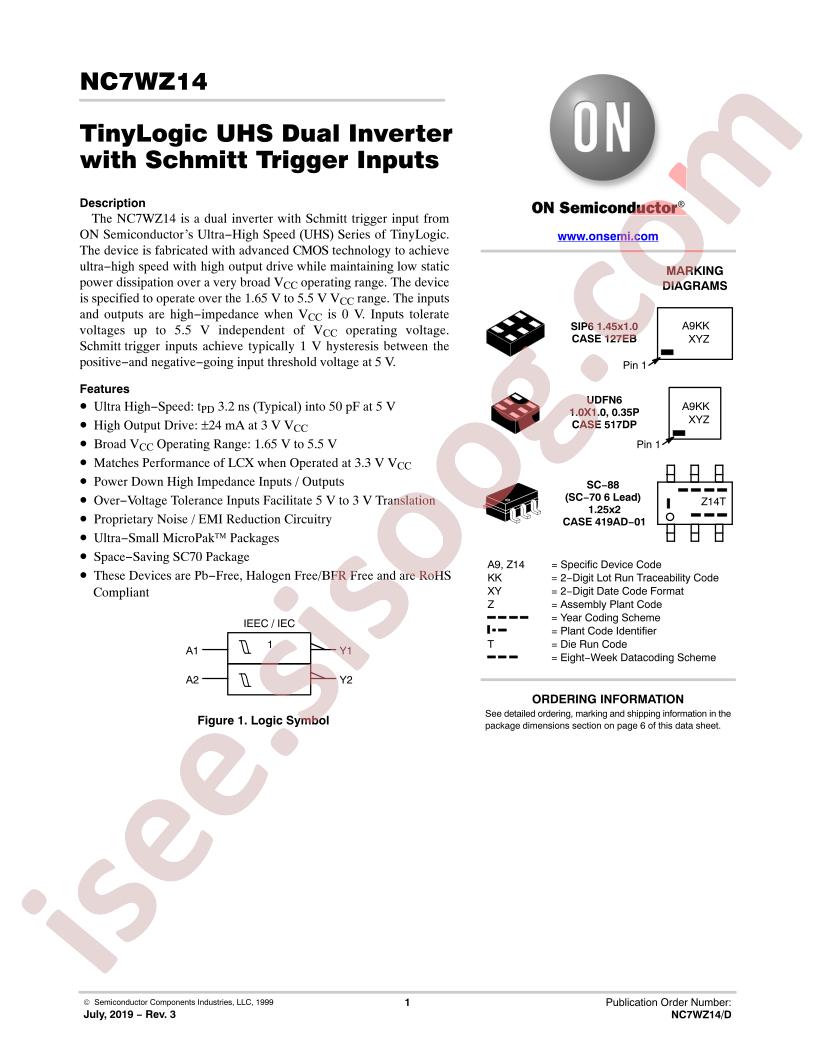

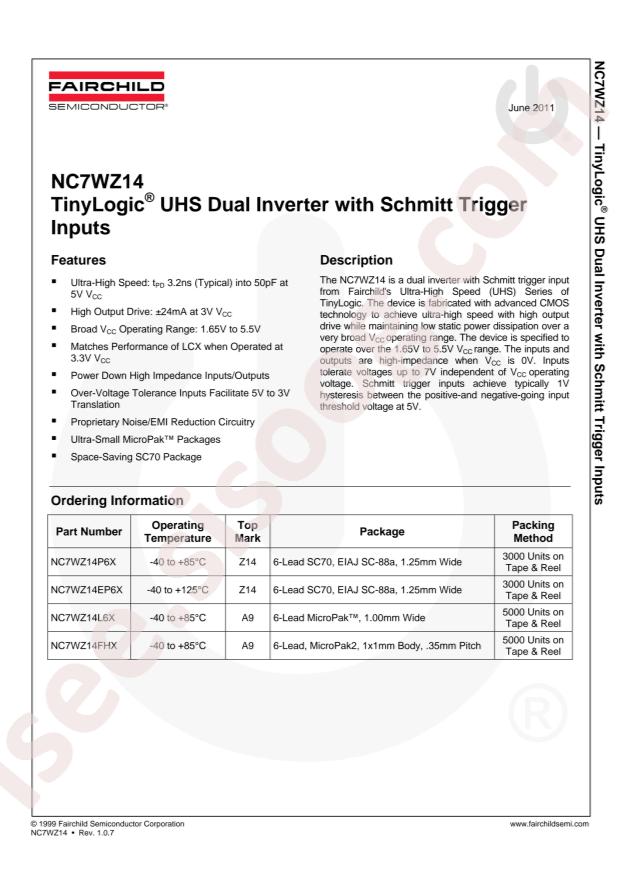

دیتاشیت NC7WZ14P6X
مشخصات دیتاشیت
| نام دیتاشیت |
NC7WZ14
|
| حجم فایل |
379.707
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
10
|
مشخصات
-
RoHS:
true
-
Series:
7WZ
-
Category:
Logic ICs/Inverters
-
Datasheet:
onsemi NC7WZ14P6X
-
Input Type:
Schmitt Trigger
-
Sink Current:
32mA
-
Source Current:
32mA
-
Number of channels:
2
-
Supply Current (Max):
1uA
-
Low level range (VIL):
0.2V~1.2V
-
Max Propagation Delay:
4.9ns@5V,50pF
-
Operating Temperature:
40°C~+85°C
-
High level range (VIH):
1.4V~3.6V
-
Supply Voltage(Single):
1.65V~5.5V
-
Package:
SOT-363-6(SC-70-6)
-
Manufacturer:
onsemi
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Logic Type:
Inverter
-
Number of Circuits:
2
-
Number of Inputs:
2
-
Features:
Schmitt Trigger
-
Voltage - Supply:
1.65V ~ 5.5V
-
Current - Quiescent (Max):
1µA
-
Current - Output High, Low:
32mA, 32mA
-
Logic Level - Low:
0.2V ~ 1.2V
-
Logic Level - High:
1.4V ~ 3.6V
-
Max Propagation Delay @ V, Max CL:
4.9ns @ 5V, 50pF
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
SC-88 (SC-70-6)
-
Package / Case:
6-TSSOP, SC-88, SOT-363
-
Base Part Number:
NC7WZ1
