- دیتاشیت NTF3055-100T1G
دیتاشیت NTF3055-100T1G
مشخصات دیتاشیت
| نام دیتاشیت | NTF3055−100, NVF3055−100 |
|---|---|
| حجم فایل | 128.141 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 6 |
دانلود دیتاشیت NTF3055−100, NVF3055−100 |

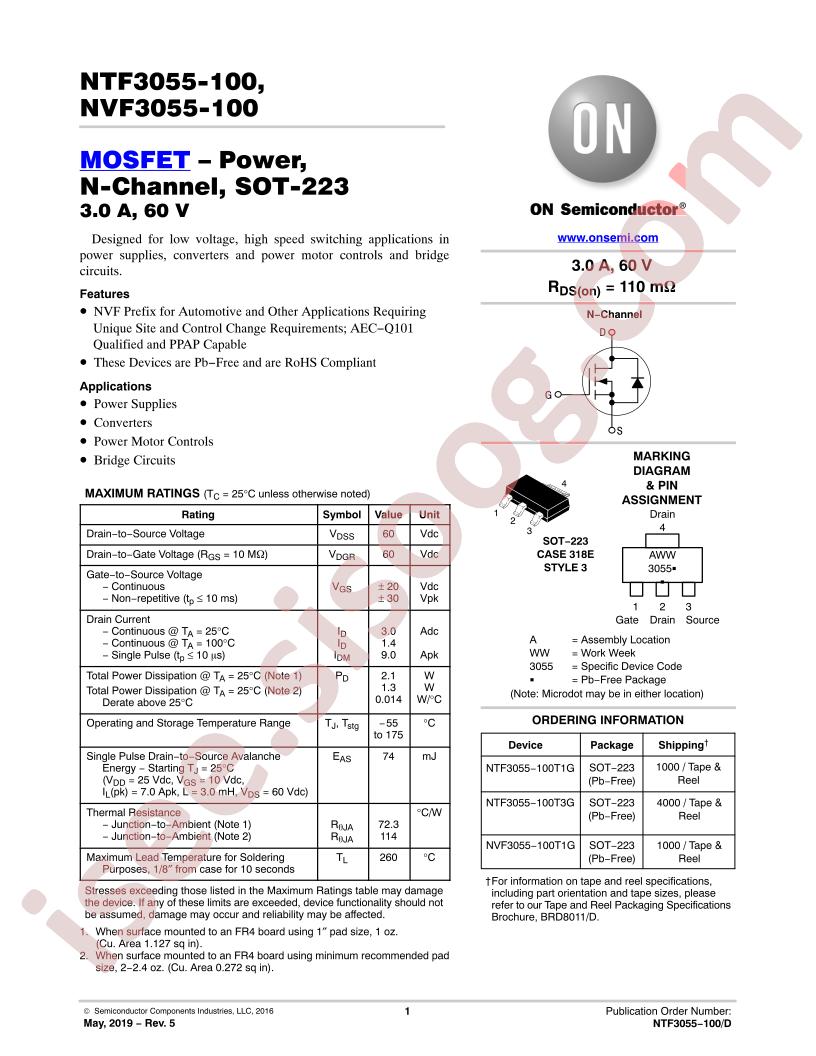

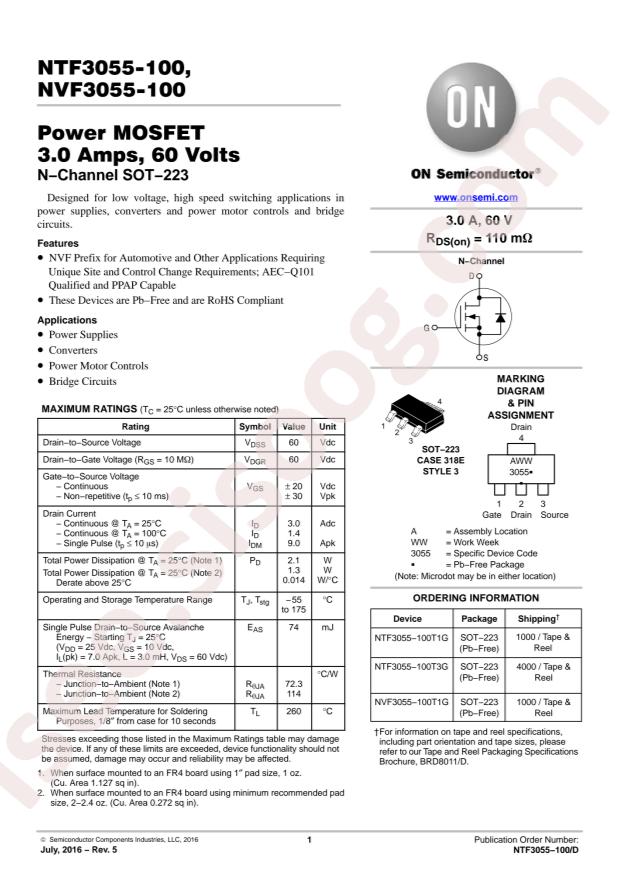

NTF3055−100, NVF3055−100 Datasheet |
|---|
مشخصات
- RoHS: true
- Type: N Channel
- Category: Triode/MOS Tube/Transistor/MOSFETs
- Datasheet: onsemi NTF3055-100T1G
- Operating Temperature: -55°C~+175°C@(Tj)
- Power Dissipation (Pd): 1.3W
- Total Gate Charge (Qg@Vgs): 22nC@10V
- Drain Source Voltage (Vdss): 60V
- Input Capacitance (Ciss@Vds): 455pF@25V
- Continuous Drain Current (Id): 3A
- Gate Threshold Voltage (Vgs(th)@Id): 4V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id): 110mΩ@10V,1.5A
- Package: SOT-223-4
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60V
- Current - Continuous Drain (Id) @ 25°C: 3A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 110mOhm @ 1.5A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 22nC @ 10V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 455pF @ 25V
- FET Feature: -
- Power Dissipation (Max): 1.3W (Ta)
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-223 (TO-261)
- Package / Case: TO-261-4, TO-261AA
- Base Part Number: NTF305
- detail: N-Channel 60V 3A (Ta) 1.3W (Ta) Surface Mount SOT-223 (TO-261)
