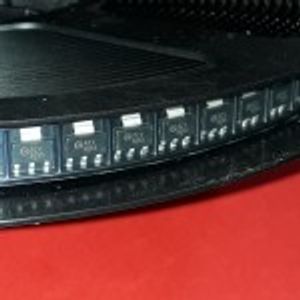

NTF3055-100T1G
در 1 فروشگاه از 63,376 تا 63,376 تومان
| Manufacturer | onsemi |
| Package | TO-261-4, TO-261AA |
| Datasheet | NTF3055−100, NVF3055−100 |
| Description | N-Channel 60V 3A (Ta) 1.3W (Ta) Surface Mount SOT-223 (TO-261) |
فروشنده های NTF3055-100T1G
| قیمت | |||
| NTF3055-100T1G | 63376 تومان |
خرید اینترنتی
آخرین تغییر قیمت فروشگاه:
|
مشخصات NTF3055-100T1G
- RoHS true
- Type N Channel
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet onsemi NTF3055-100T1G
- Operating Temperature -55°C~+175°C@(Tj)
- Power Dissipation (Pd) 1.3W
- Total Gate Charge (Qg@Vgs) 22nC@10V
- Drain Source Voltage (Vdss) 60V
- Input Capacitance (Ciss@Vds) 455pF@25V
- Continuous Drain Current (Id) 3A
- Gate Threshold Voltage (Vgs(th)@Id) 4V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id) 110mΩ@10V,1.5A
- Package SOT-223-4
- Manufacturer onsemi
- Series -
- Packaging Cut Tape (CT)
- Part Status Obsolete
- FET Type N-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 60V
- Current - Continuous Drain (Id) @ 25°C 3A (Ta)
- Drive Voltage (Max Rds On, Min Rds On) 10V
- Rds On (Max) @ Id, Vgs 110mOhm @ 1.5A, 10V
- Vgs(th) (Max) @ Id 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs 22nC @ 10V
- Vgs (Max) ±20V
- Input Capacitance (Ciss) (Max) @ Vds 455pF @ 25V
- FET Feature -
- Power Dissipation (Max) 1.3W (Ta)
- Mounting Type Surface Mount
- Supplier Device Package SOT-223 (TO-261)
- Package / Case TO-261-4, TO-261AA
- Base Part Number NTF305
- detail N-Channel 60V 3A (Ta) 1.3W (Ta) Surface Mount SOT-223 (TO-261)
