دیتاشیت NCP1252EDR2G

NCP1252

مشخصات دیتاشیت

نام دیتاشیت NCP1252
حجم فایل 378.298 کیلوبایت
نوع فایل pdf
تعداد صفحات 22

دانلود دیتاشیت NCP1252

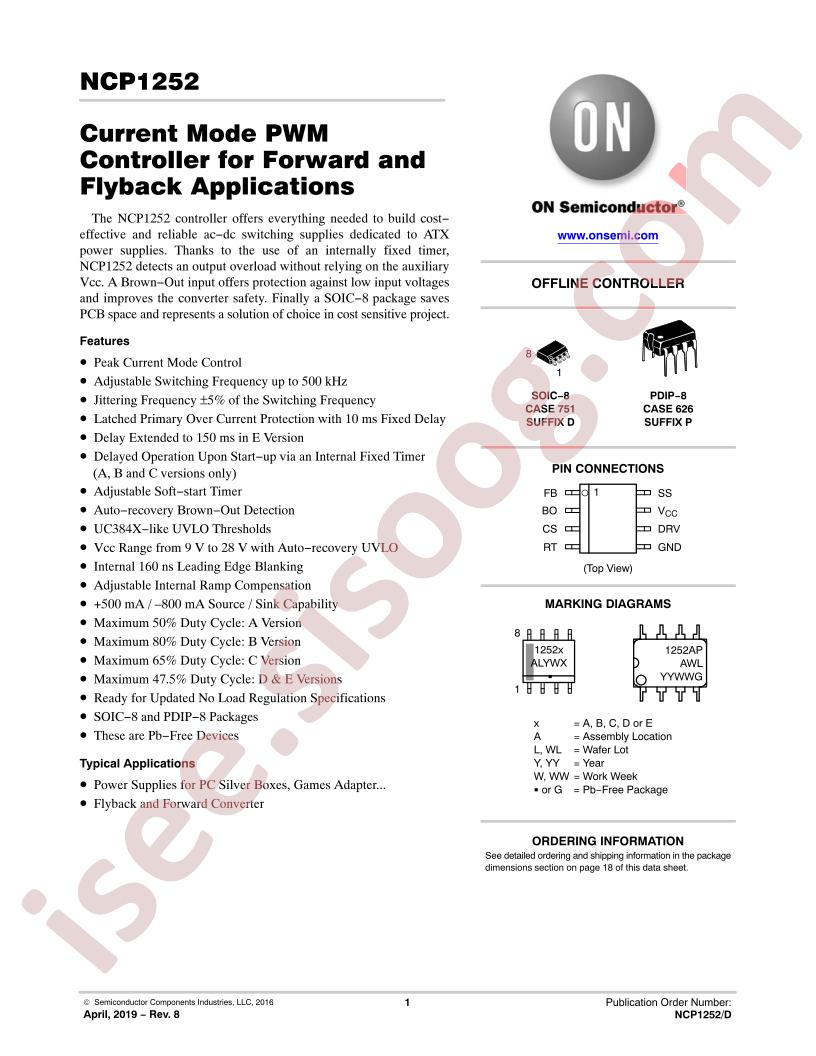

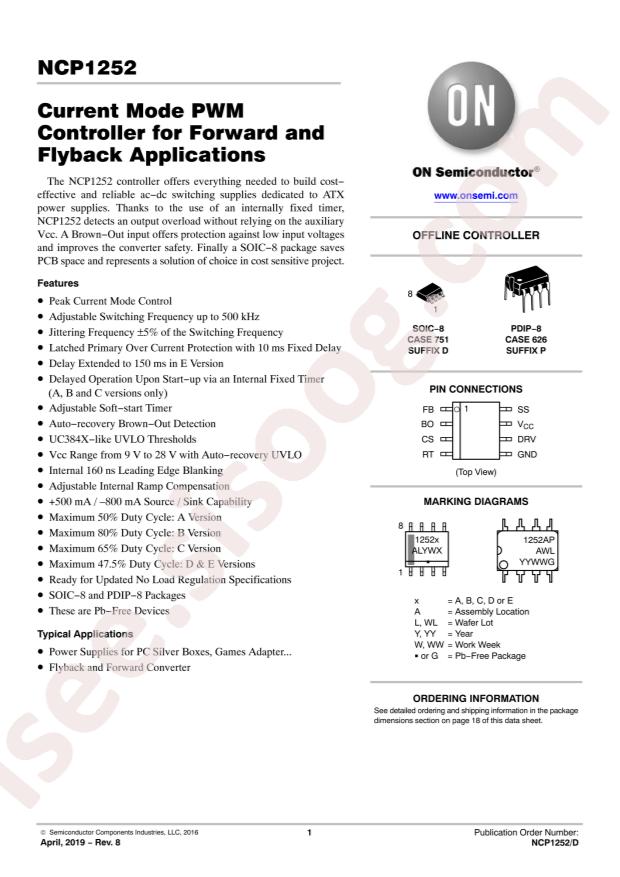

NCP1252 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/AC-DC Controllers & Regulators
  • Topology: Flyback;Forward
  • Datasheet: onsemi NCP1252EDR2G
  • Duty Cycle: 45.6%
  • Supply Voltage: 9V~28V
  • Output Isolation: Isolation
  • Switching Frequency: 500kHz
  • Operating Temperature: -25°C~+125°C@(Tj)
  • Package: SOP-8
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Internal Switch(s): No
  • Voltage - Breakdown: -
  • Voltage - Start Up: 14V
  • Voltage - Supply (Vcc/Vdd): 9V ~ 28V
  • Frequency - Switching: Up to 500kHz
  • Fault Protection: Current Limiting
  • Control Features: Frequency Control, Soft Start

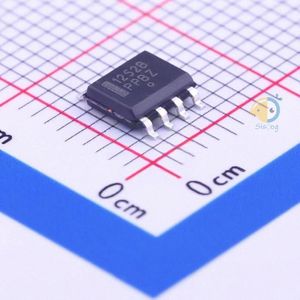

  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Mounting Type: Surface Mount
  • Base Part Number: NCP1252
  • detail: Converter Offline Flyback, Forward Topology Up to 500kHz 8-SOIC
