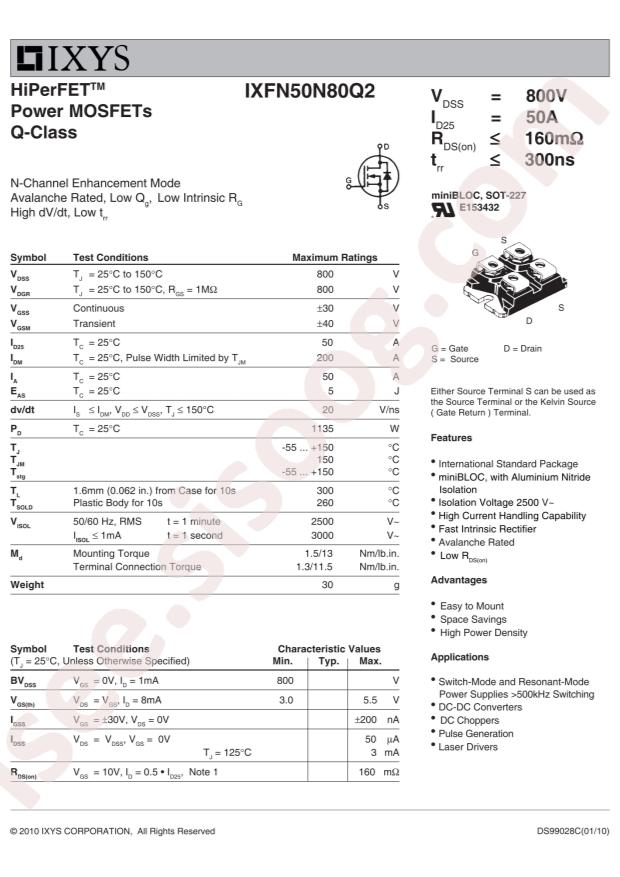

دیتاشیت IXFN50N80Q2
مشخصات دیتاشیت
| نام دیتاشیت |
IXFN50N80Q2
|
| حجم فایل |
175.446
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
5
|
مشخصات
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Littelfuse/IXYS IXFN50N80Q2
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
1.135kW
-
Total Gate Charge (Qg@Vgs):
260nC@10V
-
Drain Source Voltage (Vdss):
800V
-
Input Capacitance (Ciss@Vds):
13500pF@25V
-
Continuous Drain Current (Id):
50A
-
Gate Threshold Voltage (Vgs(th)@Id):
5.5V@8mA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
160mΩ@10V,25A
-
Package:
SOT-227
-
Manufacturer:
IXYS
-
Series:
HiPerFET™
-
Packaging:
Tube
-
Part Status:
Not For New Designs
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
800V
-
Current - Continuous Drain (Id) @ 25°C:
50A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
160mOhm @ 500mA, 10V
-
Vgs(th) (Max) @ Id:
5.5V @ 8mA
-
Gate Charge (Qg) (Max) @ Vgs:
260nC @ 10V
-
Vgs (Max):
±30V
-
Input Capacitance (Ciss) (Max) @ Vds:
13500pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
1135W (Tc)
-
Mounting Type:
Chassis Mount
-
Supplier Device Package:
SOT-227B
-
Package / Case:
SOT-227-4, miniBLOC
