دیتاشیت IXTQ50N25T
مشخصات دیتاشیت
| نام دیتاشیت | IXT(A,H,P,Q)50N25T |
|---|---|
| حجم فایل | 275.692 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 7 |
دانلود دیتاشیت IXT(A,H,P,Q)50N25T |

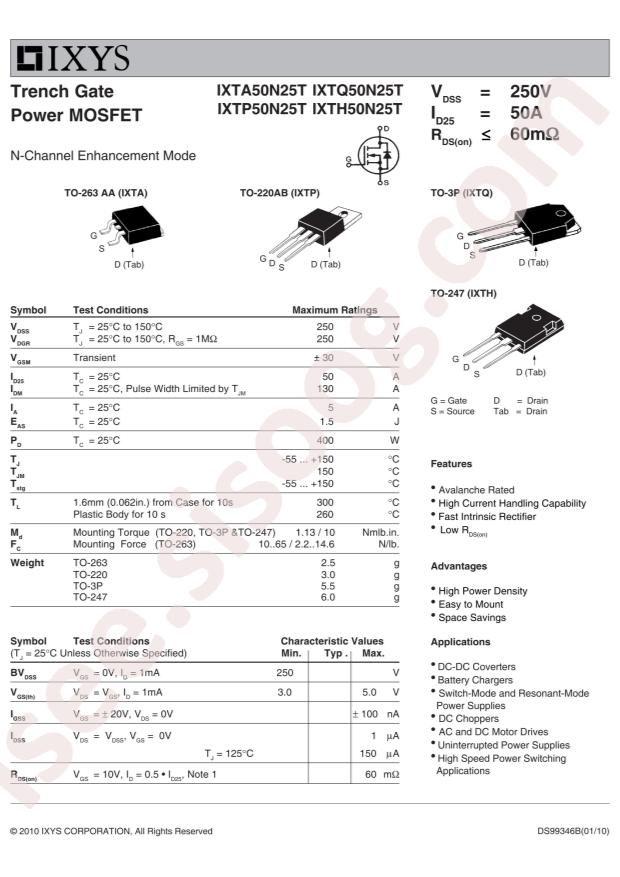

IXT(A,H,P,Q)50N25T Datasheet |
|---|
مشخصات
- RoHS: true
- Type: N Channel
- Category: Triode/MOS Tube/Transistor/MOSFETs
- Datasheet: Littelfuse/IXYS IXTQ50N25T
- Operating Temperature: -55°C~+150°C@(Tj)
- Power Dissipation (Pd): 400W
- Total Gate Charge (Qg@Vgs): 78nC@10V
- Drain Source Voltage (Vdss): 250V
- Input Capacitance (Ciss@Vds): 4000pF@25V
- Continuous Drain Current (Id): 50A
- Gate Threshold Voltage (Vgs(th)@Id): 5V@1mA
- Drain Source On Resistance (RDS(on)@Vgs,Id): 60mΩ@10V,25A

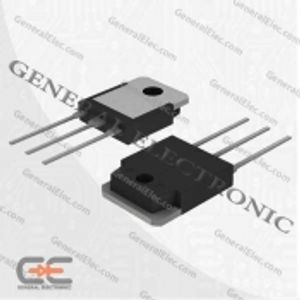

- Package: TO-3P-3
- Manufacturer: IXYS
- Series: -
- Packaging: Tube
- Part Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 250V
- Current - Continuous Drain (Id) @ 25°C: 50A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 60mOhm @ 25A, 10V
- Vgs(th) (Max) @ Id: 5V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 78nC @ 10V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 4000pF @ 25V
- FET Feature: -
- Power Dissipation (Max): 400W (Tc)
- Mounting Type: Through Hole
- Supplier Device Package: TO-3P
- Package / Case: TO-3P-3, SC-65-3
