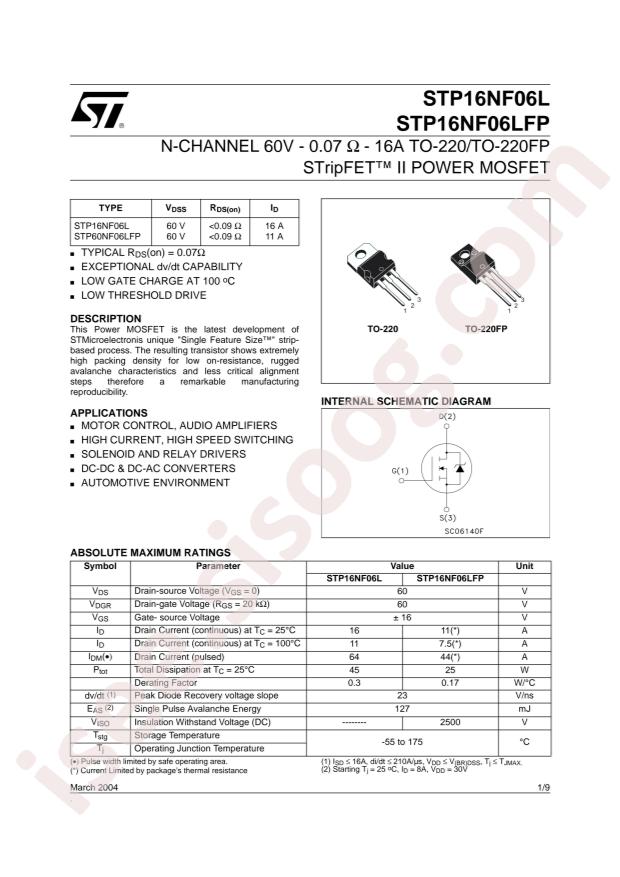

دیتاشیت STP16NF06L
مشخصات دیتاشیت
| نام دیتاشیت |
STP16NF06(FP)
|
| حجم فایل |
325.179
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
14
|
مشخصات
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
STMicroelectronics STP16NF06L
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
45W
-
Total Gate Charge (Qg@Vgs):
10nC@5V
-
Drain Source Voltage (Vdss):
60V
-
Input Capacitance (Ciss@Vds):
345pF@25V
-
Continuous Drain Current (Id):
16A
-
Gate Threshold Voltage (Vgs(th)@Id):
2.5V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
90mΩ@10V,8A
-
Package:
TO-220
-
Manufacturer:
STMicroelectronics
-
Series:
STripFET™ II
-
Packaging:
Tube
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
60V
-
Current - Continuous Drain (Id) @ 25°C:
16A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
100mOhm @ 8A, 10V
-
Vgs(th) (Max) @ Id:
4V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
13nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
315pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
45W (Tc)
-
Mounting Type:
Through Hole
-
Supplier Device Package:
TO-220AB
-
Package / Case:
TO-220-3
-
Base Part Number:
STP16N
-
detail:
N-Channel 60V 16A (Tc) 45W (Tc) Through Hole TO-220AB
