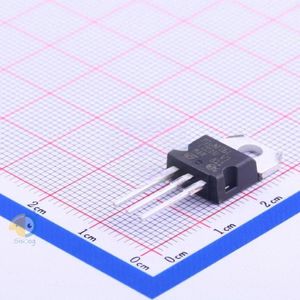

STP16NF06L
در 1 فروشگاه قیمت هنوز مشخص نشده است
| Manufacturer | STMicroelectronics |
| Package | TO-220-3 |
| Datasheet | STP16NF06(FP) |
| Description | N-Channel 60V 16A (Tc) 45W (Tc) Through Hole TO-220AB |
فروشنده های STP16NF06L
| قیمت | |||
| STP16NF06L | بدون قیمت |
خرید اینترنتی
آخرین تغییر قیمت فروشگاه:
|
تغییرات قیمت
مشخصات STP16NF06L
- RoHS true
- Type N Channel
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet STMicroelectronics STP16NF06L
- Operating Temperature -55°C~+175°C@(Tj)
- Power Dissipation (Pd) 45W
- Total Gate Charge (Qg@Vgs) 10nC@5V
- Drain Source Voltage (Vdss) 60V
- Input Capacitance (Ciss@Vds) 345pF@25V
- Continuous Drain Current (Id) 16A
- Gate Threshold Voltage (Vgs(th)@Id) 2.5V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id) 90mΩ@10V,8A
- Package TO-220
- Manufacturer STMicroelectronics
- Series STripFET™ II
- Packaging Tube
- Part Status Active
- FET Type N-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 60V
- Current - Continuous Drain (Id) @ 25°C 16A (Tc)
- Drive Voltage (Max Rds On, Min Rds On) 10V
- Rds On (Max) @ Id, Vgs 100mOhm @ 8A, 10V
- Vgs(th) (Max) @ Id 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs 13nC @ 10V
- Vgs (Max) ±20V
- Input Capacitance (Ciss) (Max) @ Vds 315pF @ 25V
- FET Feature -
- Power Dissipation (Max) 45W (Tc)
- Mounting Type Through Hole
- Supplier Device Package TO-220AB
- Package / Case TO-220-3
- Base Part Number STP16N
- detail N-Channel 60V 16A (Tc) 45W (Tc) Through Hole TO-220AB
