دیتاشیت FDN335N
مشخصات دیتاشیت
| نام دیتاشیت | FDN335N Datasheet |
|---|---|
| حجم فایل | 203.197 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 5 |
دانلود دیتاشیت FDN335N Datasheet |

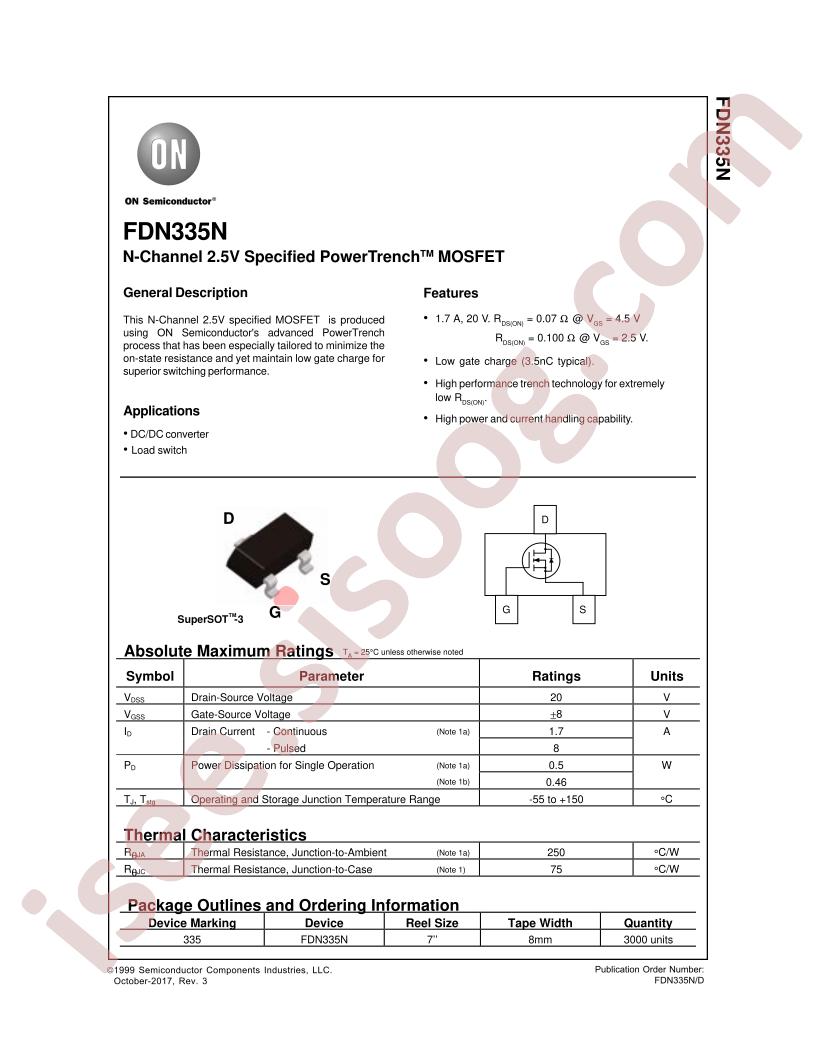

FDN335N Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Type: N Channel
- Category: Triode/MOS Tube/Transistor/MOSFETs
- Datasheet: onsemi FDN335N
- Operating Temperature: -55°C~+150°C@(Tj)
- Power Dissipation (Pd): 500mW
- Total Gate Charge (Qg@Vgs): 5nC@4.5V
- Drain Source Voltage (Vdss): 20V
- Input Capacitance (Ciss@Vds): 310pF@10V
- Continuous Drain Current (Id): 1.7A
- Gate Threshold Voltage (Vgs(th)@Id): 1.5V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id): 70mΩ@4.5V,1.7A
- Package: SOT-23(TO-236)
- Manufacturer: onsemi
- Reverse Transfer Capacitance (Crss@Vds): -
- Series: PowerTrench®
- Packaging: Cut Tape (CT)
- Part Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20V
- Current - Continuous Drain (Id) @ 25°C: 1.7A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 70mOhm @ 1.7A, 4.5V
- Vgs(th) (Max) @ Id: 1.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 5nC @ 4.5V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 310pF @ 10V
- FET Feature: -
- Power Dissipation (Max): 500mW (Ta)
- Mounting Type: Surface Mount
- Supplier Device Package: SuperSOT-3
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Base Part Number: FDN335
- detail: N-Channel 20V 1.7A (Ta) 500mW (Ta) Surface Mount SuperSOT-3
