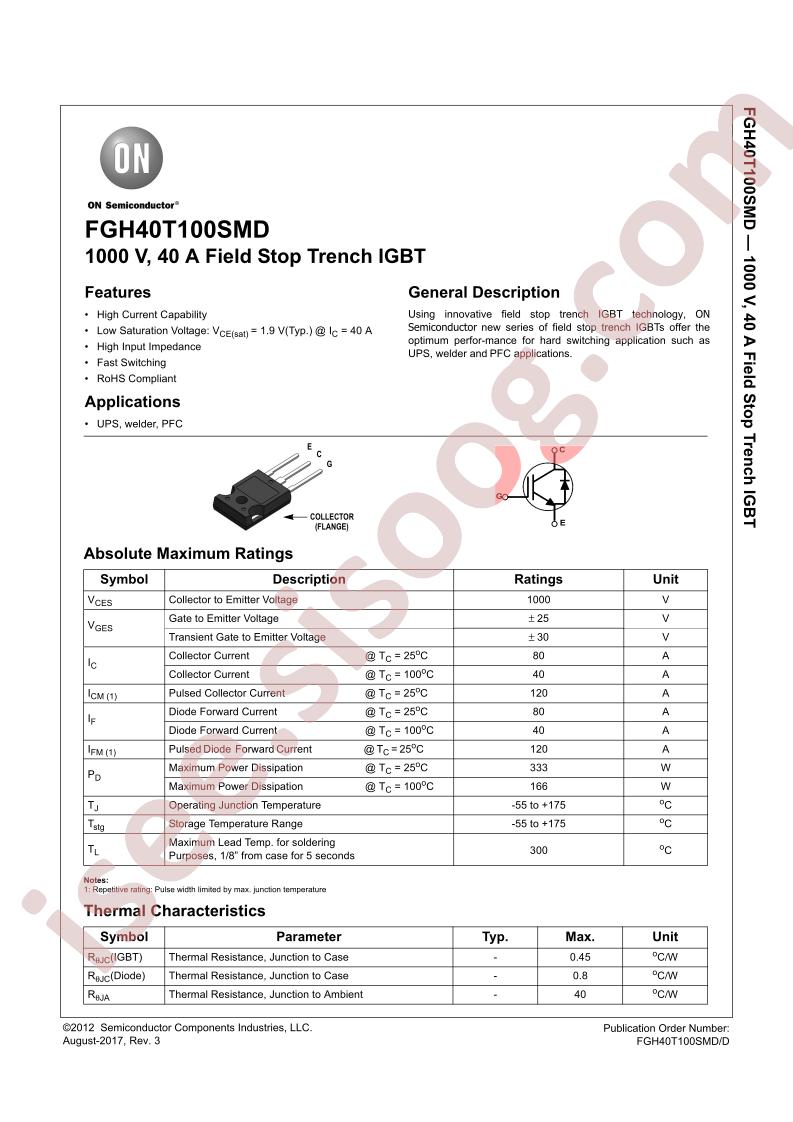

FGH40T100SMD دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
FGH40T100SMD
|
|
حجم فایل
|
2024.291
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
10
|
مشخصات فنی
-
Manufacturer:
ON Semiconductor
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
IGBT Type:
Trench Field Stop
-
Voltage - Collector Emitter Breakdown (Max):
1000V
-
Current - Collector (Ic) (Max):
80A
-
Current - Collector Pulsed (Icm):
120A
-
Vce(on) (Max) @ Vge, Ic:
2.3V @ 15V, 40A
-
Power - Max:
333W
-
Switching Energy:
2.35mJ (on), 1.15mJ (off)
-
Input Type:
Standard
-
Gate Charge:
265nC
-
Td (on/off) @ 25°C:
29ns/285ns
-
Test Condition:
600V, 40A, 10Ohm, 15V
-
Reverse Recovery Time (trr):
78ns
-
Operating Temperature:
-55°C ~ 175°C (TJ)
-
Mounting Type:
Through Hole
-
Package / Case:
TO-247-3
-
Supplier Device Package:
TO-247-3
-
Base Part Number:
FGH40
-
detail:
IGBT Trench Field Stop 1000V 80A 333W Through Hole TO-247-3
