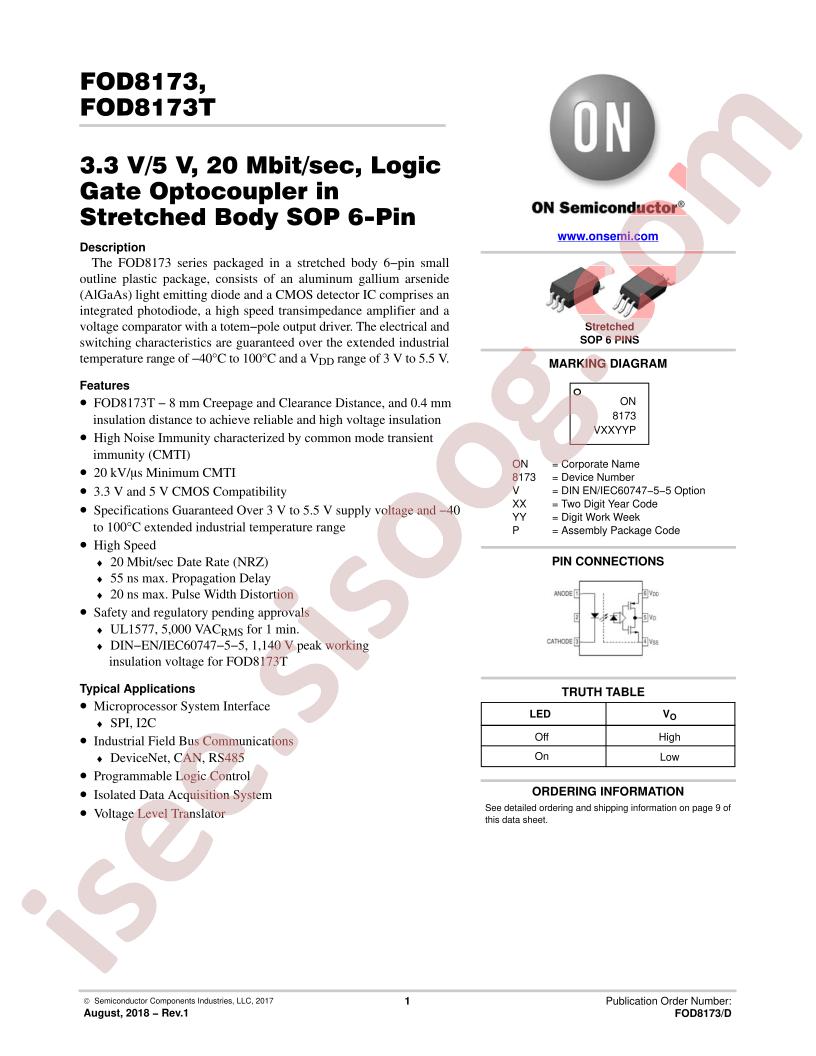

دیتاشیت FOD8173T
مشخصات دیتاشیت
| نام دیتاشیت |
FOD8173(T)
|
| حجم فایل |
338.195
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
12
|
مشخصات
-
RoHS:
true
-
Category:
Optocoupler/LED/Digital Tube/Photoelectric Device/Optocouplers - Phototransistor Output
-
Datasheet:
onsemi FOD8173T
-
Fall time:
3us@2mA,100Ω
-
Rise time:
4us@2mA,100Ω
-
Output Type:
Phototransistor
-
Output Current:
50mA
-
Forward Voltage:
1.2V
-
Reverse Voltage:
6V
-
Number of Outputs:
1
-
Input voltage type:
DC
-
Operating Temperature:
-55°C~+110°C
-
Receiving End Voltage:
70V
-
Isolation Voltage(rms):
5000V
-
Collector-Emitter Saturation Voltage (Vce(sat)@Ic,IF):
0.1V@1mA,20mA
-
Package:
SOP-6-4.6mm
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Number of Channels:
1
-
Inputs - Side 1/Side 2:
1/0
-
Voltage - Isolation:
5000Vrms
-
Common Mode Transient Immunity (Min):
20kV/µs
-
Input Type:
DC
-
Current - Output / Channel:
10mA
-
Data Rate:
20Mbps
-
Propagation Delay tpLH / tpHL (Max):
55ns, 55ns
-
Rise / Fall Time (Typ):
7ns, 7ns
-
Voltage - Forward (Vf) (Typ):
1.35V
-
Current - DC Forward (If) (Max):
20mA
-
Voltage - Supply:
3V ~ 5.5V
-
Mounting Type:
Surface Mount
-
Package / Case:
6-SOIC (0.268", 6.80mm Width)
-
Supplier Device Package:
6-SOP
-
Base Part Number:
FOD817
-
detail:
Logic Output Optoisolator 20Mbps Push-Pull, Totem Pole 5000Vrms 1 Channel 20kV/µs CMTI 6-SOP
