دیتاشیت MMBT2222ALT1
مشخصات دیتاشیت
| نام دیتاشیت | MMBT/SMMBT2222(A)L Datasheet |
|---|---|
| حجم فایل | 163.588 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 7 |
دانلود دیتاشیت MMBT/SMMBT2222(A)L Datasheet |

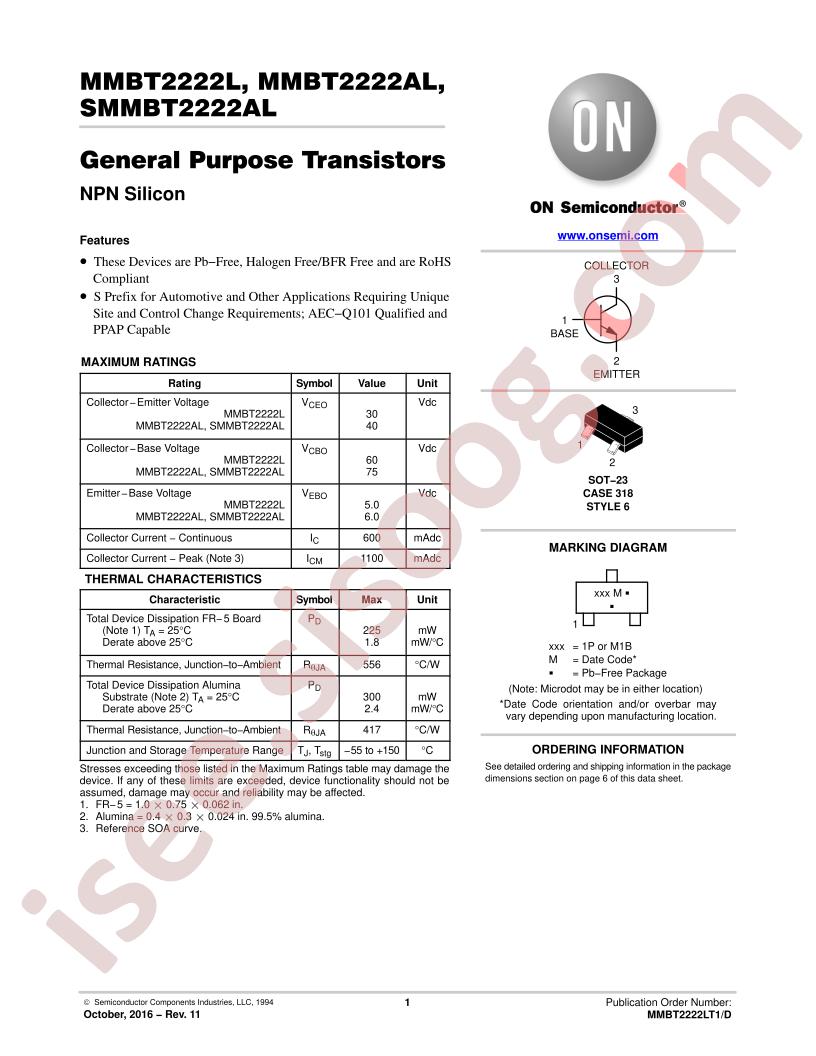

MMBT/SMMBT2222(A)L Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT

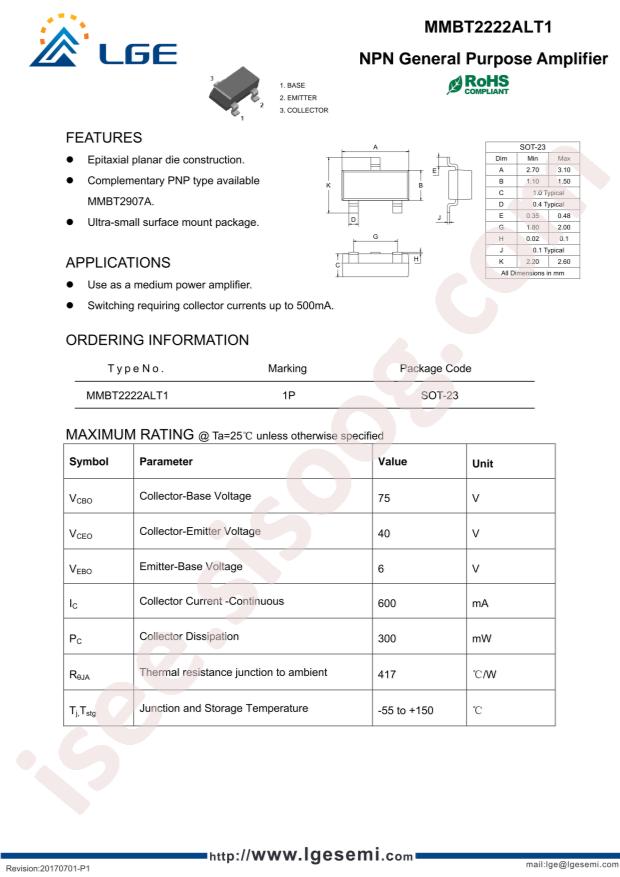

- Datasheet: LGE MMBT2222ALT1
- Transistor Type: NPN
- Operating Temperature: -55°C~+150°C@(Tj)
- Collector Current (Ic): 600mA
- Power Dissipation (Pd): 300mW
- Transition Frequency (fT): 300MHz
- DC Current Gain (hFE@Ic,Vce): 100@150mA,10V
- Collector Cut-Off Current (Icbo): 10nA
- Collector-Emitter Breakdown Voltage (Vceo): 40V
- Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 300mV@150mA,15mA
- Package: SOT-23(TO-236)
- Manufacturer: LGE
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Obsolete
- Current - Collector (Ic) (Max): 600mA
- Voltage - Collector Emitter Breakdown (Max): 40V
- Vce Saturation (Max) @ Ib, Ic: 1V @ 50mA, 500mA
- Current - Collector Cutoff (Max): 10nA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce: 100 @ 150mA, 10V
- Power - Max: 225mW
- Frequency - Transition: 300MHz
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23-3 (TO-236)
- Base Part Number: MMBT2222
