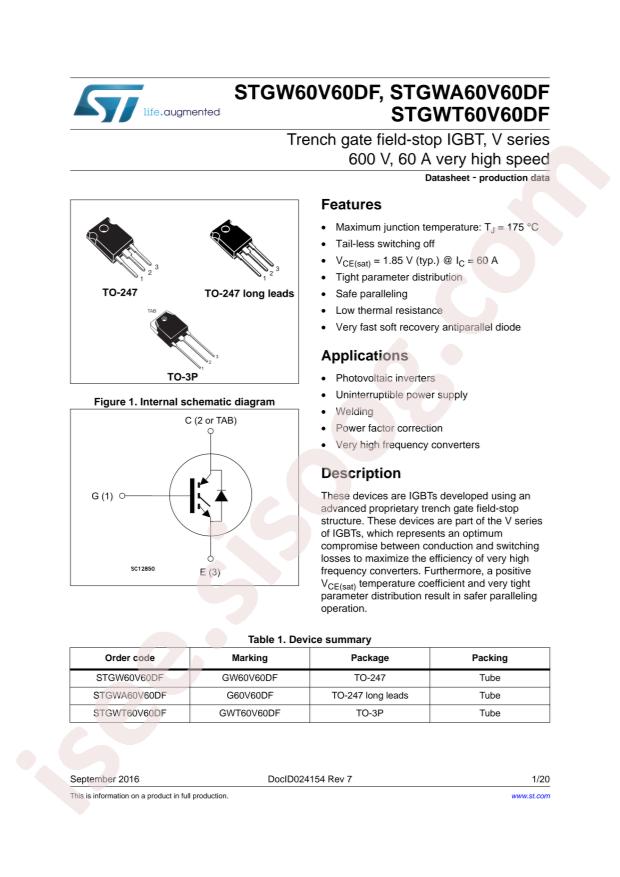

STGW60V60DF دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | STGW60V60DF |
|---|---|
| حجم فایل | 69.065 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 20 |
دانلود دیتاشیت STGW60V60DF |
دانلود دیتاشیت |
|---|
سایر مستندات
STGW(A,T)60V60DF 20 pages
مشخصات فنی
- RoHS: true
- Type: Trench Field Stop
- Category: Triode/MOS Tube/Transistor/IGBTs
- Datasheet: STMicroelectronics STGW60V60DF
- Operating Temperature: -55°C~+175°C@(Tj)
- Collector Current (Ic): 80A
- Power Dissipation (Pd): 375W
- Turn?on Delay Time (Td(on)): 60ns
- Input Capacitance (Cies@Vce): -
- Turn?on Switching Loss (Eon): 0.75mJ
- Total Gate Charge (Qg@Ic,Vge): 334nC
- Turn?off Delay Time (Td(off)): 208ns
- Pulsed Collector Current (Icm): 240A
- Turn?off Switching Loss (Eoff): 0.55mJ
- Diode Reverse Recovery Time (Trr): 74ns
- Collector-Emitter Breakdown Voltage (Vces): 600V
- Gate-Emitter Threshold Voltage (Vge(th)@Ic): 2.3V@15V,60A
- Package: TO-247
- Manufacturer: STMicroelectronics
- Series: -
- Packaging: Tube
- Part Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600V
- Current - Collector (Ic) (Max): 80A
- Current - Collector Pulsed (Icm): 240A
- Vce(on) (Max) @ Vge, Ic: 2.3V @ 15V, 60A
- Power - Max: 375W
- Switching Energy: 750µJ (on), 550µJ (off)
- Input Type: Standard
- Gate Charge: 334nC
- Td (on/off) @ 25°C: 60ns/208ns
- Test Condition: 400V, 60A, 4.7Ohm, 15V
- Reverse Recovery Time (trr): 74ns
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247
- Base Part Number: STGW60
- detail: IGBT Trench Field Stop 600V 80A 375W Through Hole TO-247
