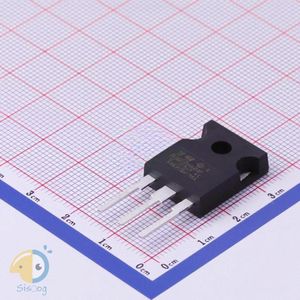

STGW60V60DF
در 1 فروشگاه قیمت هنوز مشخص نشده است
| Manufacturer | STMicroelectronics |
| Package | TO-247-3 |
| Datasheet | STGW(A,T)60V60DF |
| Description | IGBT Trench Field Stop 600V 80A 375W Through Hole TO-247 |
فروشنده های STGW60V60DF
| قیمت | |||
| STGW60V60DF | ناموجود بدون قیمت |
خرید اینترنتی
آخرین تغییر قیمت فروشگاه:
|
تغییرات قیمت
مشخصات STGW60V60DF
- RoHS true
- Type Trench Field Stop
- Category Triode/MOS Tube/Transistor/IGBTs
- Datasheet STMicroelectronics STGW60V60DF
- Operating Temperature -55°C~+175°C@(Tj)
- Collector Current (Ic) 80A
- Power Dissipation (Pd) 375W
- Turn?on Delay Time (Td(on)) 60ns
- Input Capacitance (Cies@Vce) -
- Turn?on Switching Loss (Eon) 0.75mJ
- Total Gate Charge (Qg@Ic,Vge) 334nC
- Turn?off Delay Time (Td(off)) 208ns
- Pulsed Collector Current (Icm) 240A
- Turn?off Switching Loss (Eoff) 0.55mJ
- Diode Reverse Recovery Time (Trr) 74ns
- Collector-Emitter Breakdown Voltage (Vces) 600V
- Gate-Emitter Threshold Voltage (Vge(th)@Ic) 2.3V@15V,60A
- Package TO-247
- Manufacturer STMicroelectronics
- Series -
- Packaging Tube
- Part Status Active
- IGBT Type Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max) 600V
- Current - Collector (Ic) (Max) 80A
- Current - Collector Pulsed (Icm) 240A
- Vce(on) (Max) @ Vge, Ic 2.3V @ 15V, 60A
- Power - Max 375W
- Switching Energy 750µJ (on), 550µJ (off)
- Input Type Standard
- Gate Charge 334nC
- Td (on/off) @ 25°C 60ns/208ns
- Test Condition 400V, 60A, 4.7Ohm, 15V
- Reverse Recovery Time (trr) 74ns
- Mounting Type Through Hole
- Package / Case TO-247-3
- Supplier Device Package TO-247
- Base Part Number STGW60
- detail IGBT Trench Field Stop 600V 80A 375W Through Hole TO-247
