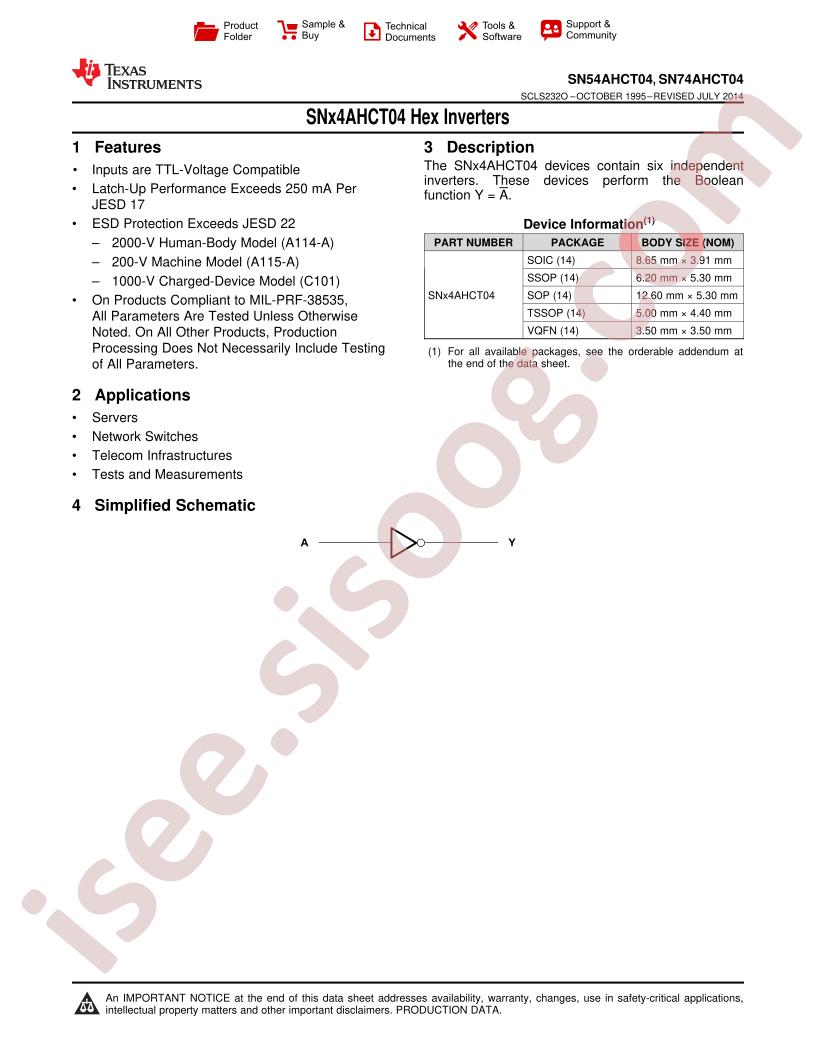

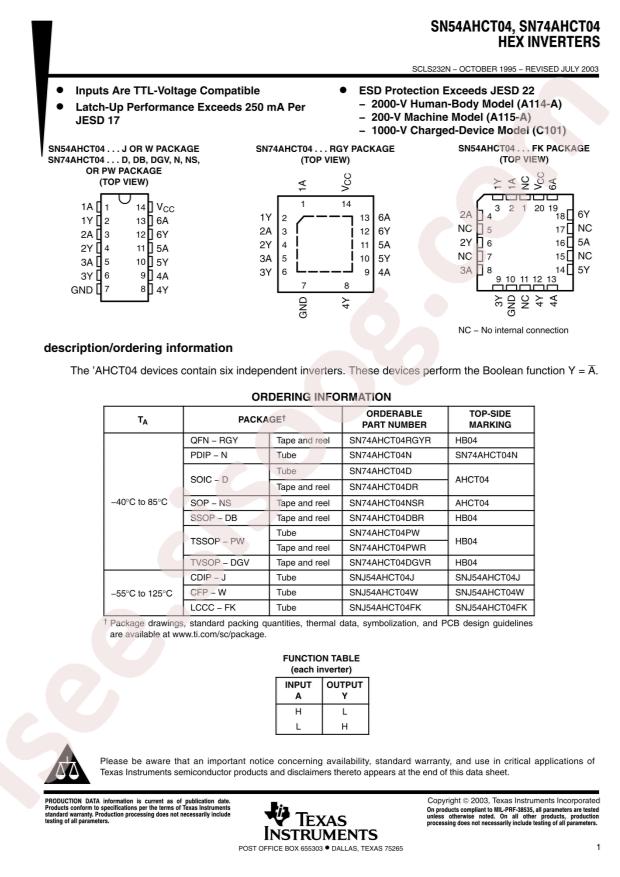

دیتاشیت SN74AHCT04PWR
مشخصات دیتاشیت
| نام دیتاشیت |
SN54/74AHCT04
|
| حجم فایل |
1601.8
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
33
|
مشخصات
-
RoHS:
true
-
Series:
74AHCT
-
Category:
Logic ICs/Inverters
-
Datasheet:
Texas Instruments SN74AHCT04PWR
-
Input Type:
-
-
Sink Current:
8mA
-
Source Current:
8mA
-
Number of channels:
6
-
Supply Current (Max):
2uA
-
Low level range (VIL):
0.8V
-
Max Propagation Delay:
7.7ns@5V,50pF
-
Operating Temperature:
-40°C~+125°C
-
High level range (VIH):
2V
-
Supply Voltage(Single):
4.5V~5.5V
-
Package:
TSSOP-14
-
Manufacturer:
Texas Instruments
-
Part Status:
Active
-
Max Propagation Delay @ V, Max CL:
7.7ns @ 5V, 50pF
-
Package / Case:
14-TSSOP (0.173", 4.40mm Width)
-
Logic Level - Low:
0.8V
-
Current - Output High, Low:
8mA, 8mA
-
Base Part Number:
SN74AHCT
-
Current - Quiescent (Max):
2µA
-
Mounting Type:
Surface Mount
-
Number of Inputs:
6
-
Voltage - Supply:
4.5V ~ 5.5V
-
Number of Circuits:
6
-
Packaging:
Cut Tape (CT)
-
Logic Type:
Inverter
-
Supplier Device Package:
14-TSSOP
-
Features:
-
-
Logic Level - High:
2V
-
detail:
Inverter IC 6 Channel 14-TSSOP
